Tractor · 1994Unverified

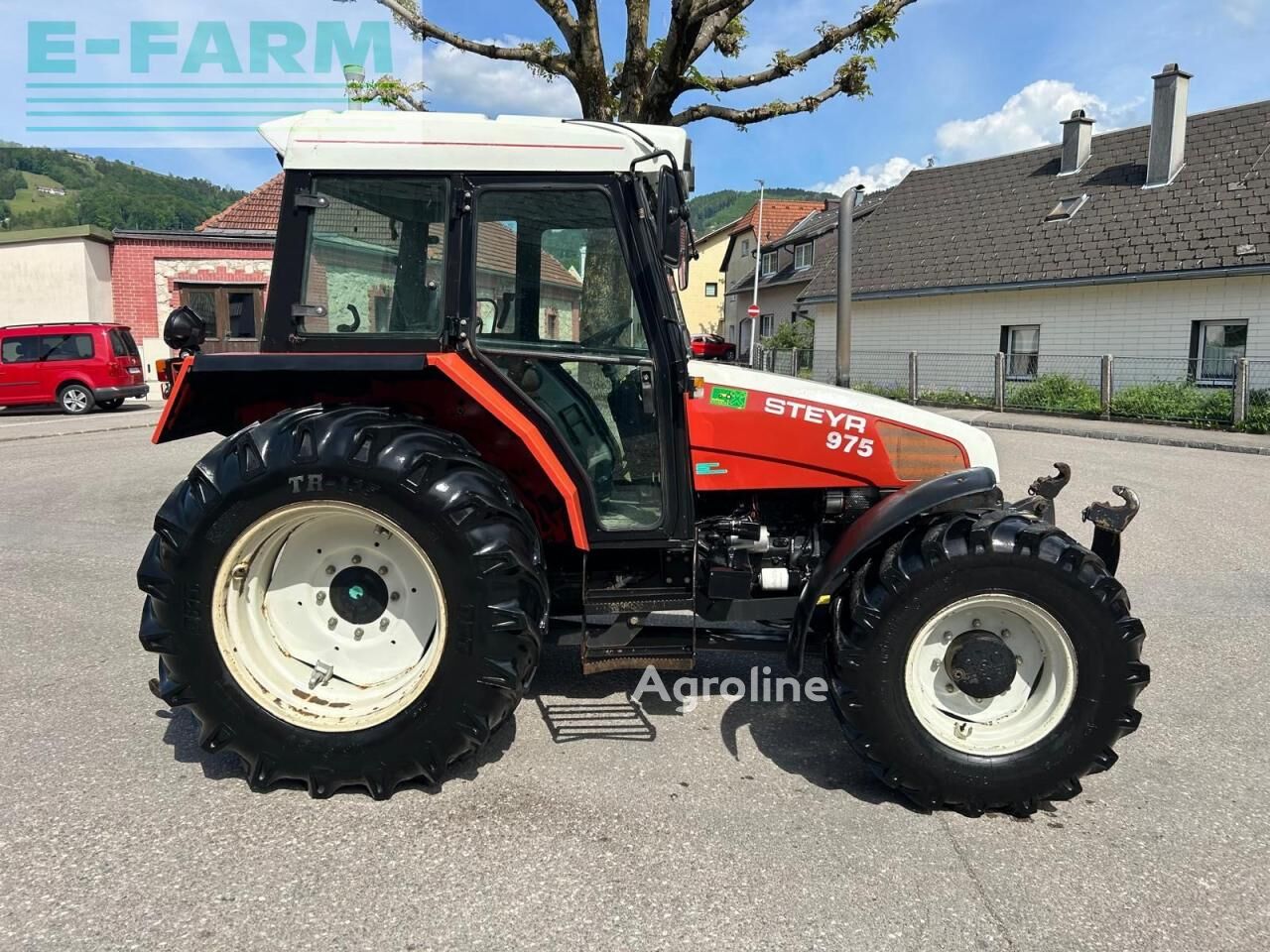

Steyr M 975
Steyr M 975 · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
2970 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Disc brakesReference
Engine
MWM 3.1L 3-cyl dieselReference
Sisu 3.3L 3-cylReference
Fuel tank83.3 LReference
Engine55.9 kWReference
MWM 301.88Reference
turbo dieselReference
3-cylinderReference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Power55.9 kWReference
Rated RPM2250Reference
Torque278.0 NmReference
Torque RPM1500Reference
Sisu 320.81Reference
turboReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Rated RPM2300Reference
Torque290.2 NmReference
Torque RPM1400Reference
Transmission
16-speedReference
TransmissionsynchroReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Total flow43.1 lpmReference
Rear lift2610 kgReference
Rear PTO Type430/540/ 750/1000Reference
Dimensions
Wheelbase223 cmReference
Weight2970 kgReference
Front tire360/70R24Reference
Rear tire480/70R30Reference
Ag front360/70R24Reference
Ag rear480/70R30Reference
Length378 cmReference
Height249 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
