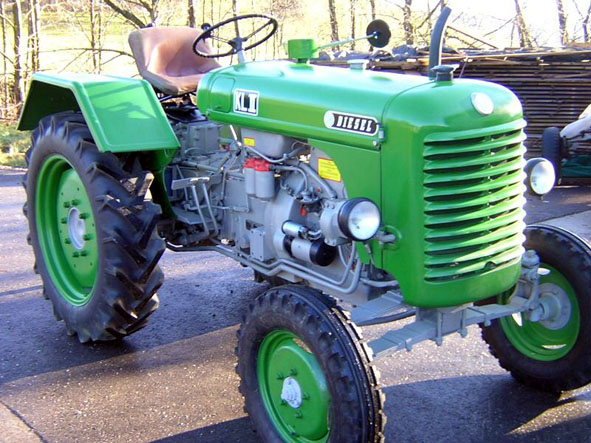

The Steyr N 180a is a compact tractor with a rated output of 30 hp. It was manufactured between 1959 and 1963. The N 180a features a 2-cylinder diesel liquid-cooled engine, coupled with a 6-speed gearbox and two-wheel drive. Its listed weight is 1900 kg, with an intended application for jobs covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1900 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
30 hp
Recorded weight
1900 kg
Transmissions
6-speed gear
Production years
1959-1963
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Orchard/Vineyard tractorReference
Two-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
Steyr 2.7L 2-cyl dieselReference
Engine (net)22.1 kWReference
Steyr WD 213fReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke110 x 140 mmReference
Power (net)22.1 kWReference
Compression21:1Reference
Rated RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase184 cmReference
Weight1900 kgReference
Front tire5.50-16Reference
Rear tire10-28Reference
Ag front5.50-16Reference
Ag rear10-28Reference
Height (steering wheel)157 cmReference
Height (hood)134 cmReference
Ground clearance34 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
