Tractor · 1959Unverified

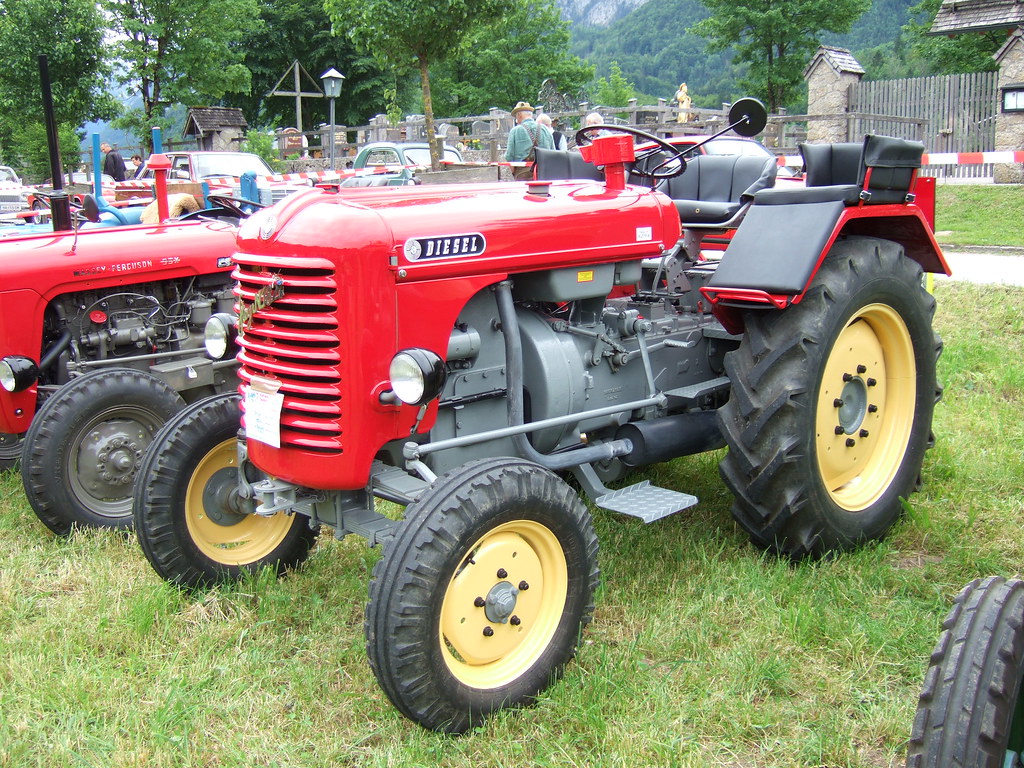

Steyr N 182a
Steyr N 182a — Orchard/Vineyard tractor · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
1920 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Orchard/Vineyard tractorReference
Two-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
Steyr 2.7L 2-cyl dieselReference
Engine (gross)26.5 kWReference
Engine (net)23.6 kWReference
Steyr WD 213gReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke110 x 140 mmReference
Power (net)23.6 kWReference
Power (gross)26.5 kWReference
Compression21:1Reference
Rated RPM1700Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase184 cmReference
Weight1920 kgReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
Height (steering wheel)161 cmReference
Height (hood)135 cmReference
Ground clearance35 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
