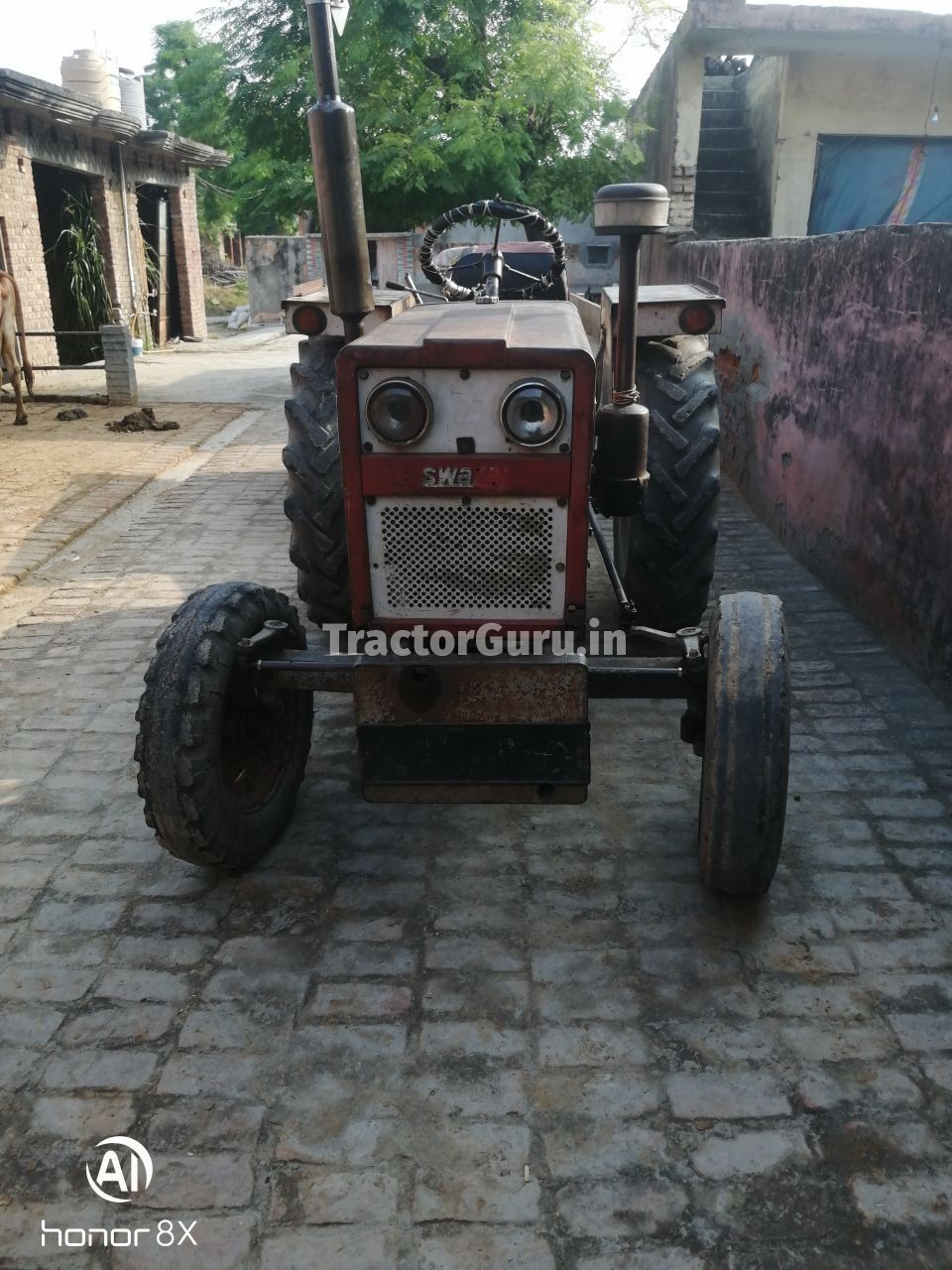

The Swaraj 722 is a tractor with a rated power of 25 hp, which places it at the lighter end of its class. Under the hood is a 1-cylinder diesel liquid-cooled engine, paired with a 8-speed gearbox. It has a listed operating weight of 1789 kg, and it suits operations of up to 200 ac. Recorded specifications in UK and US units are listed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1789 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
25 hp
Recorded weight
1789 kg
Transmissions
8-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSwarajReference
Built in IndiaReference
Disc brakesReference
Engine
1.4L 1-cyl dieselReference
Engine18.3 kWReference
S-15Reference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke120 x 126 mmReference
Power18.3 kWReference
Air cleanercyclonic pre-cleaner, oil bowl, paper filterReference
Rated RPM1900Reference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Total flow14.5 lpmReference
Rear TypeIReference
Rear lift (at ends)1000 kgReference
Rear PTO Type1000Reference
Rear PTO Type540 (optional)Reference
Dimensions
Wheelbase181 cmReference
Weight1789 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Length328 cmReference
Width166 cmReference
Height214 cmReference
Ground clearance40 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
