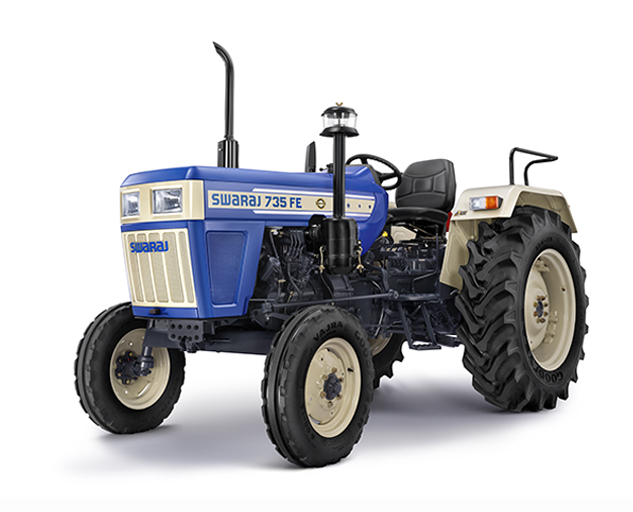

The Swaraj 735FE is a tractor with a rated power output of 39 hp, positioning it in the lighter category of its class. It is equipped with a 3-cylinder diesel liquid-cooled engine, paired with an 8-speed gearbox. The tractor's operating weight is 1925 kg, and it is suitable for operations on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
1925 kg
Catalogue coverage
Variants represented
2
Richest spec table
33 rows
Recorded power
39 hp
Recorded weight
1925 kg
Transmissions
8-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSwarajReference
Built in IndiaReference
BrakesdiscReference
Brakeswet disc (optional)Reference
Engine
2.6L 3-cyl dieselReference
Engine29.1 kWReference
RV-3 TRReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke100 x 110 mmReference
Power29.1 kWReference
Air cleanercyclonic pre-cleaner, oil bowl, paper filterReference
Rated RPM2000Reference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Total flow17.0 lpmReference
Rear TypeIReference
Rear lift (at ends)1000 kgReference
Rear PTO Type1000Reference
Rear PTO Type540 (optional)Reference
Dimensions
Wheelbase196 cmReference
Weight1925 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Length341 cmReference
Width167 cmReference
Height226 cmReference
Ground clearance38 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
