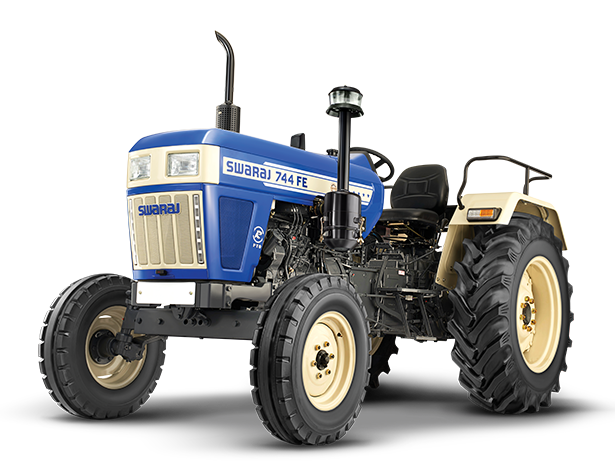

Swaraj 744FE
Swaraj 744FE · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
1930 kg
Hover a source tag to verify
Overview
ManufacturerSwarajReference
Built in IndiaReference
BrakesdiscReference
Brakeswet disc (optional)Reference
Engine
3.1L 3-cyl dieselReference
Engine35.8 kWReference
RB-30 TRReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke110 x 110 mmReference
Power35.8 kWReference
Air cleanercyclonic pre-cleaner, oil bowl, paper filterReference
Rated RPM2000Reference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Total flow17.0 lpmReference
Total flow21.0 lpmReference
Rear TypeIIReference
Rear lift (at ends)1000 kgReference
Rear lift (at ends)1500 kgReference
Rear PTOtransmissionReference
Rear PTOlive optionalReference
Rear PTO Type1000Reference
Rear PTO Type540 (optional)Reference
Dimensions
Wheelbase195 cmReference
Weight1930 kgReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Length343 cmReference
Width172 cmReference
Height216 cmReference
Ground clearance40 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
