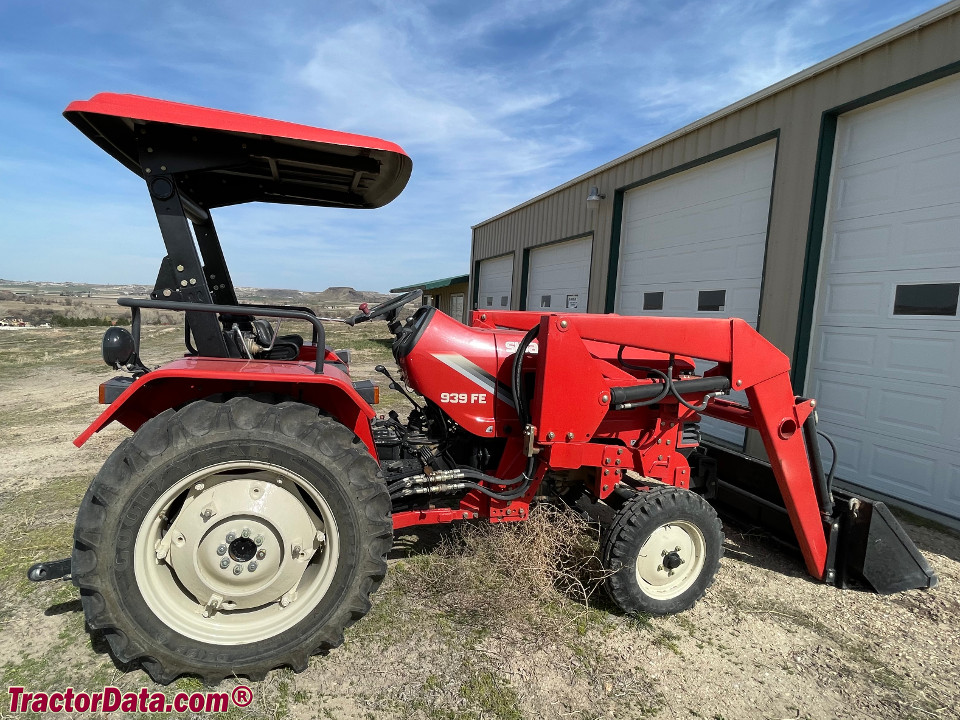

The Swaraj 939FE is a tractor with a rated power of 36 hp, categorised as a lighter model within its class. It is equipped with a 3-cylinder diesel liquid-cooled engine, paired with a mechanical front-wheel drive system that has an 8-speed gearbox. The tractor has an operating weight of 2120 kg and is suited for operations on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
2120 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
36 hp
Recorded weight
2120 kg
Transmissions
8-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSwarajReference
Built in IndiaReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Wet disc brakesReference
Engine
2.6L 3-cyl dieselReference
Fuel tank60.6 LReference
Engine26.8 kWReference
3R860EReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke100 x 110 mmReference
Power26.8 kWReference
Rated RPM2000Reference
Torque145.1 NmReference
Torque RPM1200Reference
Starter volts12Reference
Transmission
8-speedReference
Transmissionconstant meshReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Pressure180.0 barReference
Valves2Reference
Total flow41.0 lpmReference
Rear PTOindependentReference
Rear PTO Type540/groundReference
Rear PTO Type1000 (4WD)Reference
Dimensions
Wheelbase203 cmReference
Weight2120 kgReference
Front tire6.00-16Reference
Rear tire12.4R28Reference
Ag front6.00-16Reference
Ag front7.5R20 (4WD)Reference
Ag rear12.4R28Reference
Length354 cmReference
Width181 cmReference
Height235 cmReference
Ground clearance28 cmReference
Electrical
Charging amps35Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
