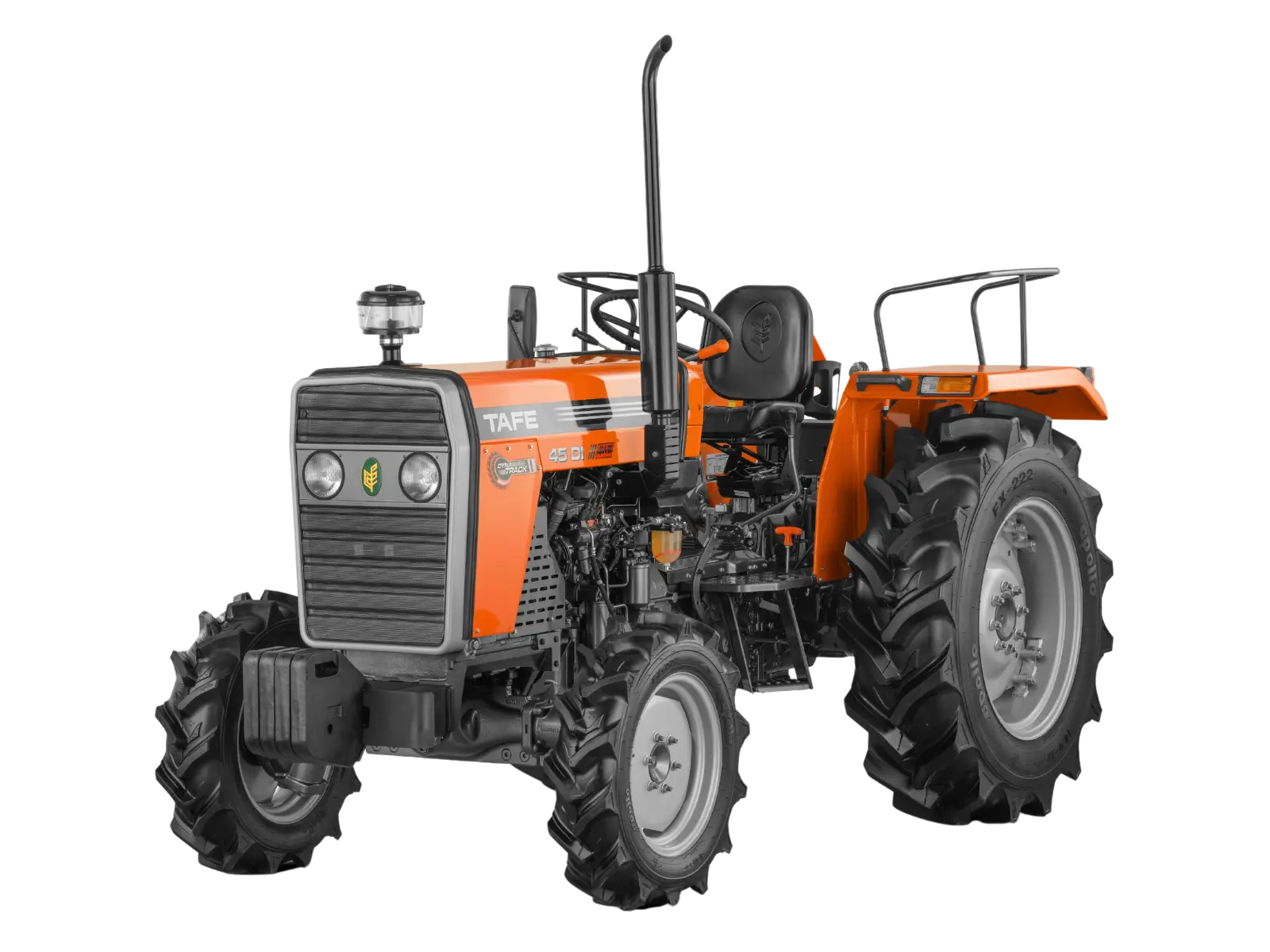

The TAFE 4500 is a tractor with a rated power output of 39 hp, situated at the lighter end of its class. It features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The tractor's operating weight is listed as 1339 kg, and it is suitable for operations spanning up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
1339 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
39 hp
Recorded weight
1339 kg
Transmissions
12-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerTAFEReference
Built in IndiaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Independent wet disc brakesReference
Engine
2.3L 4-cyl dieselReference
Fuel tank39.7 LReference
Engine32.1 kWReference
S4QSReference
dieselReference
4-cylinderReference
liquid-cooled verticalReference
Displacement2.3 LReference
Bore/Stroke88 x 95 mmReference
Power32.1 kWReference
Air cleanerdryReference
Rated RPM2600Reference
Oil capacity4.5 LReference
Coolant capacity2.6 LReference
Transmission
12-speedReference
TransmissionsynchromeshReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)29.1 kWReference
Pressure191.4 barReference
Valves2Reference
Total flow31.0 lpmReference
Rear TypeIReference
Rear lift949 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Dimensions
Weight1339 kgReference
Front tire8.0-16Reference
Rear tire12.4-24Reference
Ag front8.0-16Reference
Ag rear12.4-24Reference
Length310 cmReference
Width167 cmReference
Height223 cmReference
Ground clearance34 cmReference
Electrical
Charging amps50Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
