Tractor · 2002Unverified

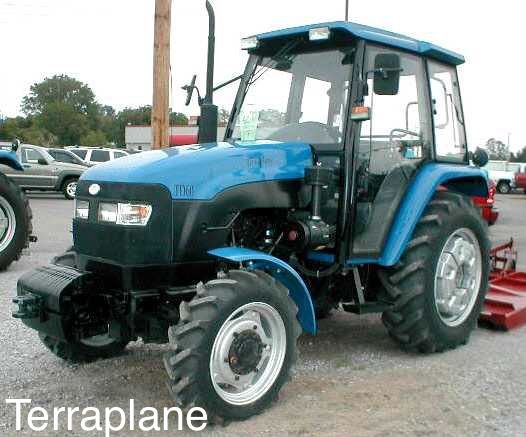

Terraplane TD50

Name: Terraplane TD50
Brand: Terraplane

Terraplane TD50 — Utility tractor · 52 hp. Reference specifications; pending source verification.

The Terraplane TD50 is a tractor with a power output of approximately 52 hp, situated at the lighter end of its class. Produced from 2002 to 2004, the TD50 features a 4-cylinder diesel liquid-cooled engine and four-wheel drive with an 8-speed gearbox. Its operating weight ranges from 6206 to 7153 pounds. The tractor is suitable for operations on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

52 hp

Weight

6206 to 7153 pounds

Catalogue coverage

Variants represented

Richest spec table

50 rows

Recorded power

52 hp

Transmissions

8-speed gear

Production years

2002-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorTerraplaneReference

ManufacturerFotonReference

Utility tractorReference

Built in ChinaReference

Two- or four-wheel driveReference

Power steeringReference

Two-post ROPS. Cab optional.Reference

Engine

3.8L 4-cyl dieselReference

Fuel tank78.0 LReference

Engine (gross)38.9 kWReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke100 x 122 mmReference

Power (gross)38.9 kWReference

Fuel systemdirect inejctionReference

Rated RPM2200Reference

Starter typeelectricReference

Transmission

8-speed gearReference

TypegearReference

Gears8 forward and 2 reverseReference

Clutchdry discReference

PTO & Hydraulics

Pressure100.0 barReference

Pump flow32.2 lpmReference

Steering flow10.0 lpmReference

Steering press.70.0 barReference

Rear TypeII/IReference

Rear lift866 kgReference

Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1836Reference

Dimensions

2WD Wheelbase218 cmReference

4WD Wheelbase221 cmReference

Weight6206 to 7153 poundsReference

Front tire6.00-16Reference

2WD Rear tire14.9-28Reference

2WD Standard tires (ag)Front: 6.00-16. Rear: 14.9-28Reference

4WD Standard tires (ag)Front: 8.30-20. Rear: 14.9-28Reference

Length408 cmReference

Width182 cmReference

2WD Ground clearance39 cmReference

4WD Ground clearance27 cmReference

2WD ROPS2815 kgReference

4WD ROPS3079 kgReference

2WD Cab2979 kgReference

4WD Cab3244 kgReference

Steering wheel179 cmReference

Terraplane TD50 Height

ROPS269 cmReference

Cab243 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
