Tractor · 2010Unverified

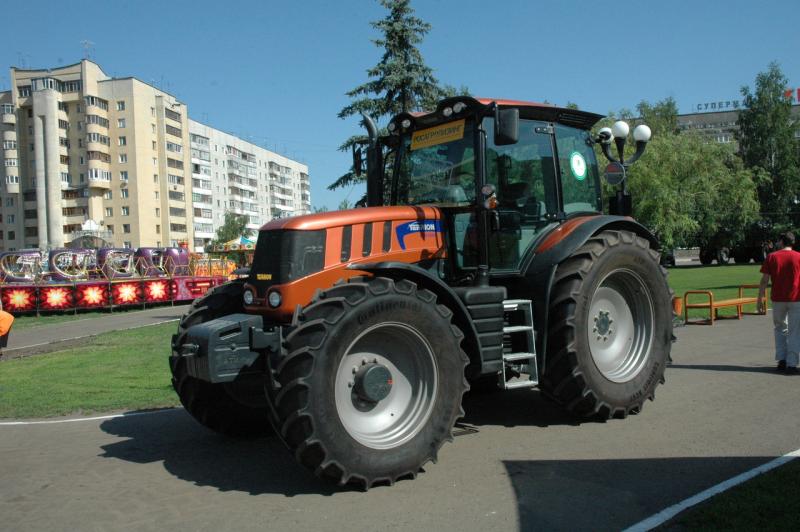

Terrion ATM 4160

Name: Terrion ATM 4160
Brand: Terrion

Terrion ATM 4160 — ATM 4000 Series · 163 hp. Reference specifications; pending source verification.

The Terrion ATM 4160 is a tractor with a rated output of 163 horsepower, categorising it amongst the higher-powered machines in its class. It was manufactured in 2010. The tractor is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives through a four-wheel drive system with a powershift transmission. The listed weight of the Terrion ATM 4160 is 6699 kg, and it is intended for use on plots of around 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

163 hp

Weight

6699 kg

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

163 hp

Recorded weight

6699 kg

Transmissions

40-speed four-speed power shift

Production years

2010-2010

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerTerrionReference

Row-Crop tractorReference

Built in Tambov, RussiaReference

Four-wheel driveReference

Power steeringReference

Cab standard with air-condtioning.Reference

Engine

Deutz 6.1L 6-cyl dieselReference

Fuel tank400.1 LReference

Engine121.5 kWReference

Deutz TCD 2012 L06 2VReference

intercooled turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke101 x 126 mmReference

Power121.5 kWReference

Maximum Power126.8 kWReference

Rated RPM2100Reference

Starter typeelectricReference

Transmission

40-speed four-speed power shiftReference

TransmissionZFReference

Typefour-speed power shiftReference

Gears40 forward and reverseReference

PTO & Hydraulics

Valves4Reference

Pump flow110.1 lpmReference

Pump flow145.0 lpmReference

Rear TypeIIIReference

Rear lift9380 kgReference

Front HitchIIINReference

Front lift3875 kgReference

Rear PTO Type540/750/1000Reference

Front PTOoptionalReference

Front PTO Type1000Reference

Dimensions

Wheelbase287 cmReference

Weight6699 kgReference

Front tire540/65R34Reference

Rear tire650/65R42Reference

Ag front540/65R34Reference

Ag rear650/65R42Reference

Length489 cmReference

Width240 cmReference

Height (cab)329 cmReference

Shipping weight6699 kgReference

Max weight10999 kgReference

Ground clearance59 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
