Tractor · 2010Unverified

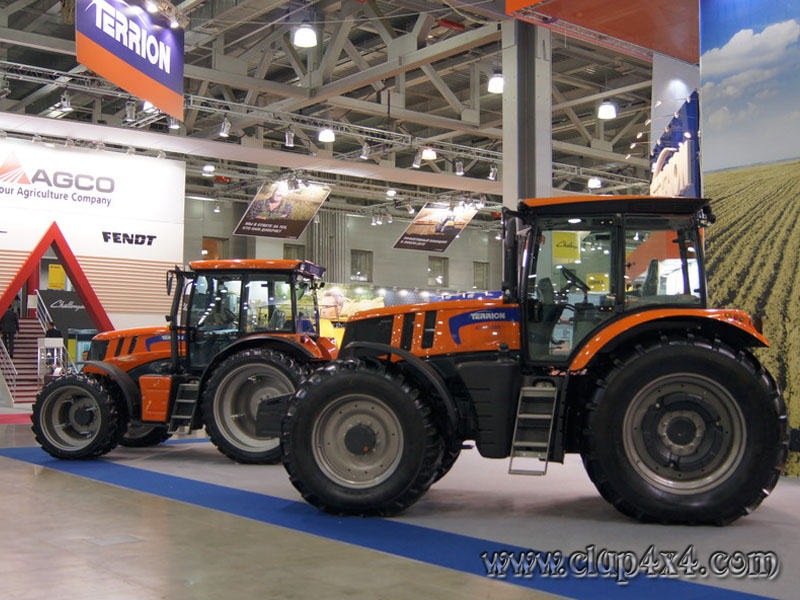

Terrion ATM 4180
Terrion ATM 4180 — ATM 4000 Series · 180 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
180 hp
Weight
6699 kg
Hover a source tag to verify
Overview
ManufacturerTerrionReference
Row-Crop tractorReference
Built in Tambov, RussiaReference
Four-wheel driveReference
Power steeringReference
Cab standard with air-condtioning.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank400.1 LReference
Engine134.2 kWReference
Deutz TCD 2012 L06 2VReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke101 x 126 mmReference
Power134.2 kWReference
Maximum Power140.9 kWReference
Rated RPM2100Reference
Starter typeelectricReference
Transmission
40-speed four-speed power shiftReference
TransmissionZFReference
Typefour-speed power shiftReference
Gears40 forward and reverseReference
PTO & Hydraulics
Valves4Reference
Pump flow110.1 lpmReference
Pump flow145.0 lpmReference
Rear TypeIIIReference
Rear lift9380 kgReference
Front HitchIIINReference
Front lift3875 kgReference
Rear PTO Type540/750/1000Reference
Front PTOoptionalReference
Front PTO Type1000Reference
Dimensions
Wheelbase287 cmReference
Weight6699 kgReference
Front tire540/65R34Reference
Rear tire650/65R42Reference
Ag front540/65R34Reference
Ag rear650/65R42Reference
Length489 cmReference
Width240 cmReference
Height (cab)329 cmReference
Shipping weight6699 kgReference
Max weight10999 kgReference
Ground clearance59 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
