Tractor · 2010Unverified

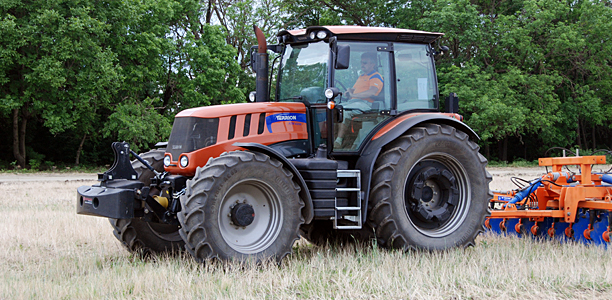

Terrion ATM 4200
Terrion ATM 4200 — ATM 4000 Series · 197 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
197 hp
Weight
6799 kg
Hover a source tag to verify
Overview
ManufacturerTerrionReference
Row-Crop tractorReference
Built in Tambov, RussiaReference
Four-wheel driveReference
Power steeringReference
Cab standard with air-condtioning.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank374.7 LReference
Engine146.9 kWReference
Deutz BF 6M 2012CReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke101 x 126 mmReference
Power146.9 kWReference
Rated RPM2200Reference
Starter typeelectricReference
Transmission
40-speed four-speed power shiftReference
TransmissionZF T7232Reference
Typefour-speed power shiftReference
Gears40 forward and reverseReference
PTO & Hydraulics
Valves4Reference
Pump flow110.1 lpmReference
Pump flow149.9 lpmReference
Rear TypeIIIReference
Controlposition and draft controlReference
Front HitchIIINReference
Rear PTO Type540/540E/1000/1000EReference
Front PTOoptionalReference
Front PTO Type1000Reference
Dimensions
Wheelbase287 cmReference
Weight6799 kgReference
Front tire420/85R34Reference
Rear tire520/85R42Reference
Ag front420/85R34Reference
Ag rear520/85R42Reference
Length488 cmReference
Width244 cmReference
Height (cab)329 cmReference
Shipping weight6799 kgReference
Max weight10999 kgReference
Ground clearance59 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
