Tractor · 2010Unverified

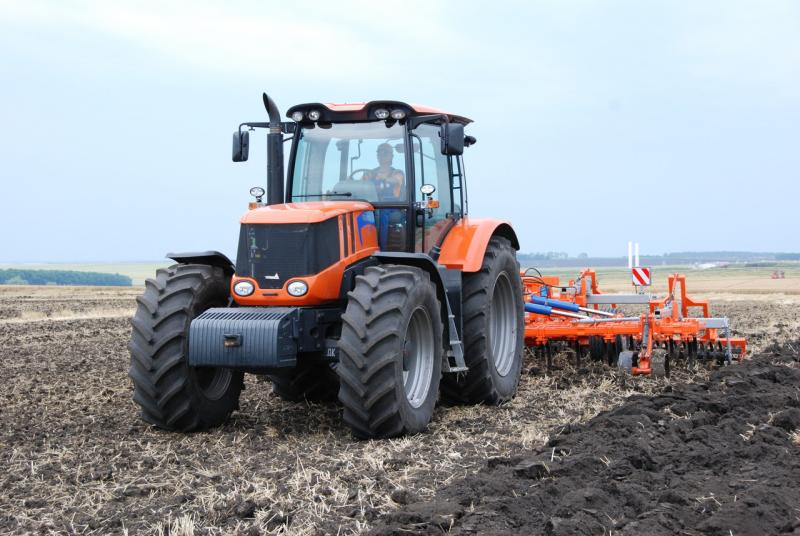

Terrion ATM 5250

Name: Terrion ATM 5250
Brand: Terrion

Terrion ATM 5250 — ATM 5000 Series · 245 hp. Reference specifications; pending source verification.

The Terrion ATM 5250 is a tractor with a rated power output of 245 hp, positioning it at the higher end of its class. It was manufactured in 2010. The model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. Its listed operating weight is 9099 kg, suitable for operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

245 hp

Weight

9099 kg

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

245 hp

Recorded weight

9099 kg

Transmissions

40-speed four-speed power shift

Production years

2010-2010

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerTerrionReference

Row-Crop tractorReference

Built in Tambov, RussiaReference

Four-wheel driveReference

Power steeringReference

Cab standard with air-condtioning.Reference

Engine

Deutz 7.1L 6-cyl dieselReference

Fuel tank559.8 LReference

Engine182.7 kWReference

Deutz TCD 2013 L06 2VReference

intercooled turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.1 LReference

Bore/Stroke108 x 130 mmReference

Power182.7 kWReference

Maximum Power191.6 kWReference

Rated RPM2300Reference

Starter typeelectricReference

Transmission

40-speed four-speed power shiftReference

TransmissionZFReference

Typefour-speed power shiftReference

Gears40 forward and reverseReference

PTO & Hydraulics

Valves5Reference

Pump flow110.1 lpmReference

Pump flow149.9 lpmReference

Rear TypeIIIReference

Controlposition and draft controlReference

Rear lift10704 kgReference

Front HitchIIINReference

Front lift5506 kgReference

Rear PTO Type540E/1000Reference

Front PTOoptionalReference

Front PTO Type1000Reference

Dimensions

Wheelbase307 cmReference

Weight9099 kgReference

Front tire600/65R38Reference

Rear tire710/70R42Reference

Ag front600/65R38Reference

Ag rear710/70R42Reference

Length510 cmReference

Width249 cmReference

Height (cab)335 cmReference

Shipping weight9099 kgReference

Max weight13998 kgReference

Ground clearance65 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
