Tractor · 2008Unverified

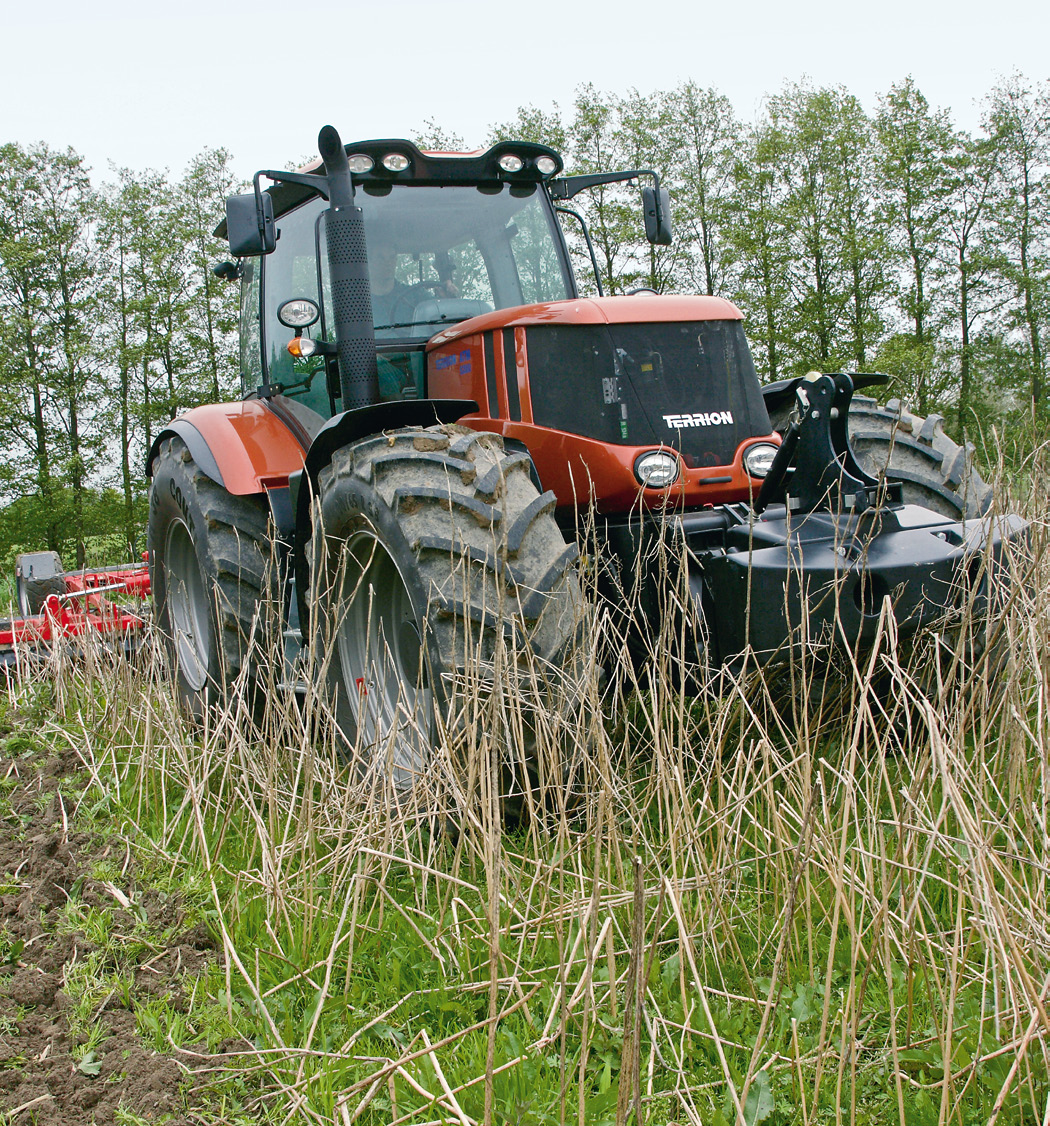

Terrion ATM 5280

Name: Terrion ATM 5280
Brand: Terrion

Terrion ATM 5280 — ATM 5000 Series · 275 hp. Reference specifications; pending source verification.

The Terrion ATM 5280 is a tractor model with a rated output of 275 hp, positioning it among the higher-powered machines in its class. Manufactured in 2008, it features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, driving through four-wheel drive with a powershift transmission. The listed weight is 9199 kg, and it is designed for use on plots of approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

275 hp

Weight

9199 kg

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

275 hp

Recorded weight

9199 kg

Transmissions

40-speed four-speed power shift

Production years

2008-2008

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerTerrionReference

Row-Crop tractorReference

Built in Tambov, RussiaReference

Four-wheel driveReference

Power steeringReference

Cab standard with air-condtioning.Reference

Engine

Deutz 7.1L 6-cyl dieselReference

Fuel tank500.0 LReference

Engine205.1 kWReference

Deutz BF 6M1013FCReference

intercooled turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.1 LReference

Bore/Stroke108 x 130 mmReference

Power205.1 kWReference

Maximum Power211.8 kWReference

Rated RPM2200Reference

Starter typeelectricReference

Transmission

40-speed four-speed power shiftReference

TransmissionZF T7336Reference

Typefour-speed power shiftReference

Gears40 forward and reverseReference

PTO & Hydraulics

Valves5Reference

Pump flow110.1 lpmReference

Pump flow149.9 lpmReference

Rear TypeIIIReference

Controlposition and draft controlReference

Rear lift10704 kgReference

Front HitchIIINReference

Front lift5506 kgReference

Rear PTO Type540E/1000Reference

Front PTOoptionalReference

Front PTO Type1000Reference

Dimensions

Wheelbase307 cmReference

Weight9199 kgReference

Front tire600/65R38Reference

Rear tire710/70R42Reference

Ag front600/65R38Reference

Ag rear710/70R42Reference

Length510 cmReference

Width249 cmReference

Height (cab)335 cmReference

Shipping weight9199 kgReference

Max weight13998 kgReference

Ground clearance65 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
