Tractor · 2010Unverified

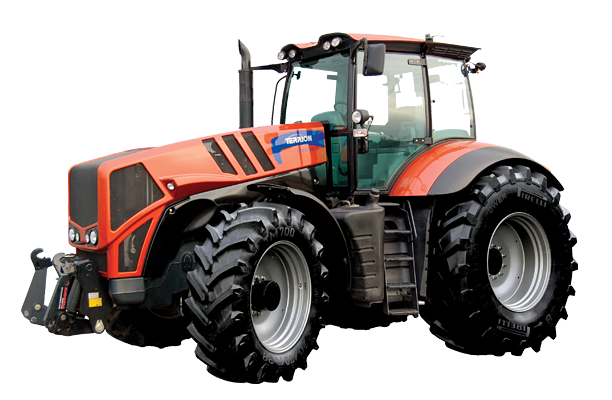

Terrion ATM 7360
Terrion ATM 7360 — ATM 7000 Series · 350 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
350 hp
Weight
11498 kg
Hover a source tag to verify
Overview
ManufacturerTerrionReference
Row-Crop tractorReference
Built in Tambov, RussiaReference
Four-wheel driveReference
Power steeringReference
Cab standard with air-condtioning.Reference
Engine
Deutz 7.1L 6-cyl dieselReference
Fuel tank699.8 LReference
Engine261.0 kWReference
Deutz TCD 2013 L06 4VReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.1 LReference
Bore/Stroke108 x 130 mmReference
Power261.0 kWReference
Maximum Power272.2 kWReference
Rated RPM2200Reference
Starter typeelectricReference
Transmission
continuously variable transmission (CVT)Reference
TransmissionZF ECCOM 5Reference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Valves5Reference
Pump flow149.9 lpmReference
Rear TypeIVReference
Controlposition and draft controlReference
Front HitchIIINReference
Rear PTO Type540E/1000Reference
Dimensions
Wheelbase310 cmReference
Weight11498 kgReference
Front tire600/65R34Reference
Rear tire710/70R42Reference
Ag front600/65R34Reference
Ag rear710/70R42Reference
Length569 cmReference
Width249 cmReference
Height (cab)338 cmReference
Shipping weight11498 kgReference
Max weight19001 kgReference
Ground clearance59 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
