Tractor · 2010Unverified

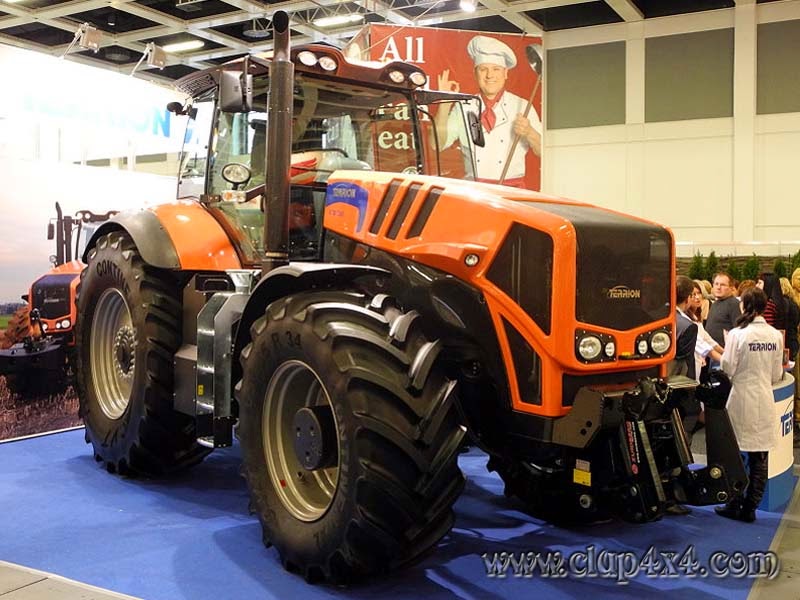

Terrion ATM 7400
Terrion ATM 7400 — ATM 7000 Series · 394 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
394 hp
Weight
12002 kg
Hover a source tag to verify
Overview
ManufacturerTerrionReference
Row-Crop tractorReference
Built in Tambov, RussiaReference
Four-wheel driveReference
Power steeringReference
Cab standard with air-condtioning.Reference
Engine
Deutz 6-cyl dieselReference
Engine293.8 kWReference
Deutz TCD 2013 L06 4VReference
dieselReference
6-cylinderReference
liquid-cooledReference
Power293.8 kWReference
Maximum Power305.7 kWReference
Rated RPM2000Reference
Starter typeelectricReference
Transmission
continuously variable transmission (CVT)Reference
TransmissionZF ECCOM 5Reference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Valves4 to 5Reference
Pump flow149.9 lpmReference
Rear TypeIVN/IIIReference
Front HitchIIINReference
Rear PTO Type1000Reference
Dimensions
Wheelbase310 cmReference
Weight12002 kgReference
Front tire650/65R38Reference
Rear tire710/75R42Reference
Ag front650/65R38Reference
Ag rear710/75R42Reference
Length569 cmReference
Width249 cmReference
Height (cab)338 cmReference
Shipping weight12002 kgReference
Max weight21999 kgReference
Ground clearance59 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
