Lawn Tractor · 2007Unverified

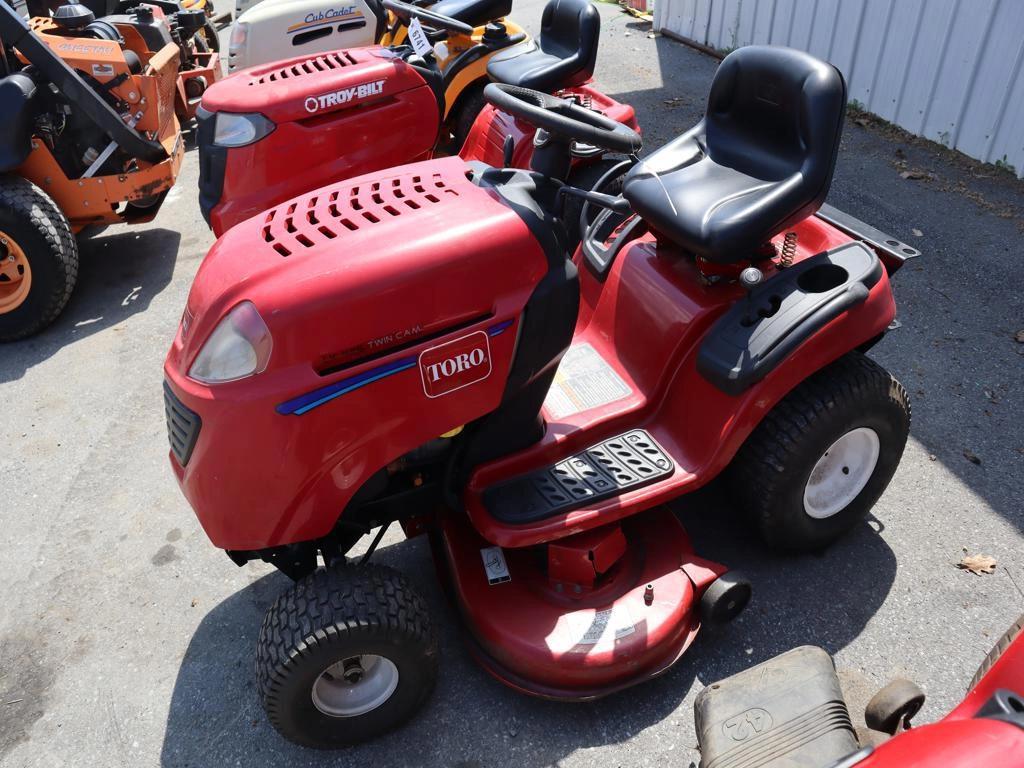

Toro LX425
Toro LX425 — LX Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
178 kg
Hover a source tag to verify
Overview
DistributorToroReference
ManufacturerMTDReference
Lawn tractorReference
Original price$1,600 (2007 )Reference
Original price$1,699 (2008 )Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
20HP Koher 596cc 1-cyl gasolineReference
Fuel tank11.4 LReference
Koher SV600Reference
gasolineReference
1-cylinderReference
air-cooled vertical-shaftReference
Displacement36.4 ciReference
Bore/Stroke94 x 86 mmReference
Power14.9 kWReference
Compression8.5:1Reference
Rated RPM3375Reference
Torque50.0 NmReference
Torque RPM2200Reference
Starter volts12Reference
Oil capacity1.5 LReference
Sparkplug gap0.762 mmReference
Transmission
mechancal CVTReference
Typemechancal CVTReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Front PTOindependentReference
ClutchmanualReference
Dimensions
Wheelbase116 cmReference
Weight178 kgReference
Front tire15x6-6Reference
Rear tire20x8-8Reference
Lawn/turf front15x6-6Reference
Lawn/turf rear20x8-8Reference
Length172 cmReference
Width96 cmReference
Height104 cmReference
Toro LX425 attachments
42" mid-mount mower deckReference
snowblowerReference
bladeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps15Reference
Battery CCA190Reference
Battery volts12Reference
Attachment overview
42" mid-mount mower deckReference
SnowblowerReference
BladeReference
42" Mower deck
Typemid-mount ToroReference
Type2-bladeReference
Cutting width106 cmReference
Cut height3 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
