Lawn Tractor · 2016Unverified

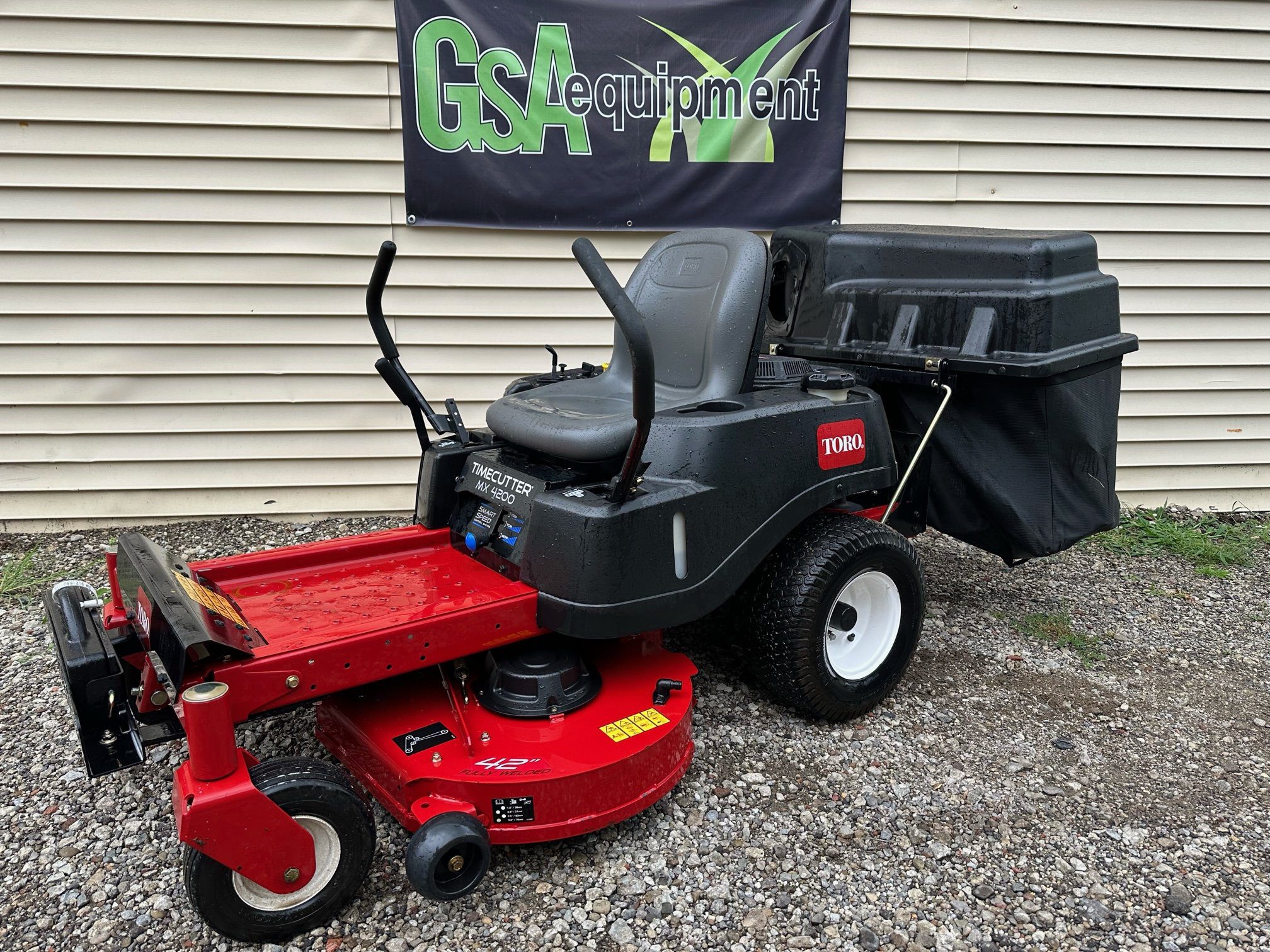

Toro MX4200
Toro MX4200 — Zero-turn mower · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Hover a source tag to verify
Overview
ManufacturerToroReference
Zero-turn mowerReference
Original price was $3,099 in 2019Reference
Two-wheel driveReference
Open operator station.Reference
Engine
16HP Loncin 452cc 1-cyl gasolineReference
22.5HP Loncin 708cc 2-cyl gasolineReference
Fuel tank11.4 LReference
Loncin 1P92FReference
gasolineReference
1-cylinderReference
air-cooledReference
The single-cylinder 1P92F was used only during the 2016 production year, mower model number 74765.Reference
Displacement27.6 ciReference
Bore/Stroke92 x 68 mmReference
Power11.9 kWReference
Compression8.8:1Reference
StarterelectricReference
Starter volts12Reference
Loncin 2P77FReference
2-cylinderReference
The two-cylinder engine was used on the MX4200 beginning in the 2017 model year, mower model 74766.Reference
Displacement43.2 ciReference
Bore/Stroke77 x 76 mmReference
Power16.8 kWReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Dimensions
Front tire11x4Reference
Rear tire18x7.5Reference
Lawn/turf front11x4Reference
Lawn/turf rear18x7.5Reference
Toro MX4200 attachments
42" mid-mount mower deckReference
Electrical
GroundnegativeReference
Battery volts12Reference
42" Mower deck
Typemid-mount ToroReference
Type2-bladeReference
Cutting width106 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
