Lawn Tractor · 2012Unverified

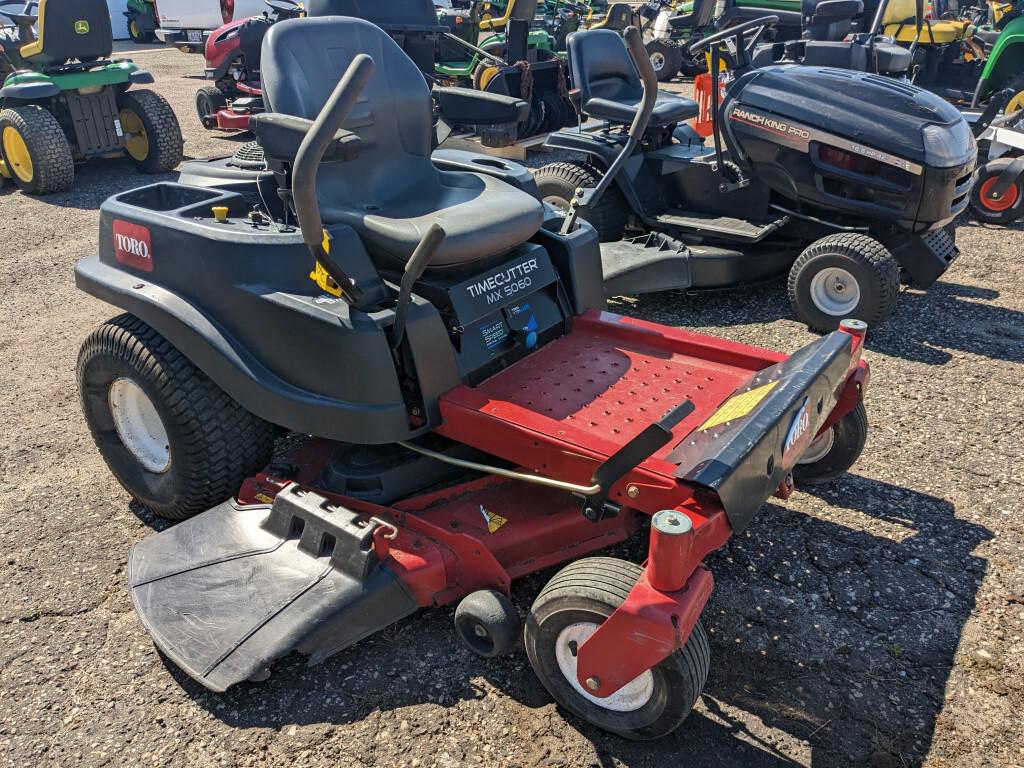

Toro MX5060 74641
Toro MX5060 74641 — TimeCutter MX Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Hover a source tag to verify
Overview
ManufacturerToroReference
Zero-turn mowerReference
Original price was $4,199 in 2015Reference
Two-wheel driveReference
Power steeringReference
open operator stationReference
Engine
23HP Kawasaki 726cc 2-cyl gasolineReference
Fuel tank11.4 LReference
Kawasaki FR691VReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement44.3 ciReference
Bore/Stroke78 x 76 mmReference
Power (gross)17.2 kWReference
StarterelectricReference
Starter volts12Reference
Oil capacity2.0 LReference
SparkplugNGK BPR4ESReference
Sparkplug gap0.762 mmReference
Transmission
hydrostaticReference
TransmissionHydro-Gear ZT-2800Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Mid PTOindependentReference
ClutchelectricReference
Dimensions
Front tire13x5Reference
Rear tire20x10Reference
Lawn/turf front13x5Reference
Lawn/turf rear20x10Reference
Length185 cmReference
Height107 cmReference
Front axleCastersReference
Toro MX5060 attachments
50" mid-mount mower deckReference
MX5060 Serial Numbers
2012312000001Reference
2013313000001Reference
2014314000001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery CCA195Reference
Battery volts12Reference
50" Mower deck
Typemid-mount ToroReference
Type3-blade with manual lever liftReference
Cutting width127 cmReference
Cut height3 to 11 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
