Lawn Tractor · 2015Unverified

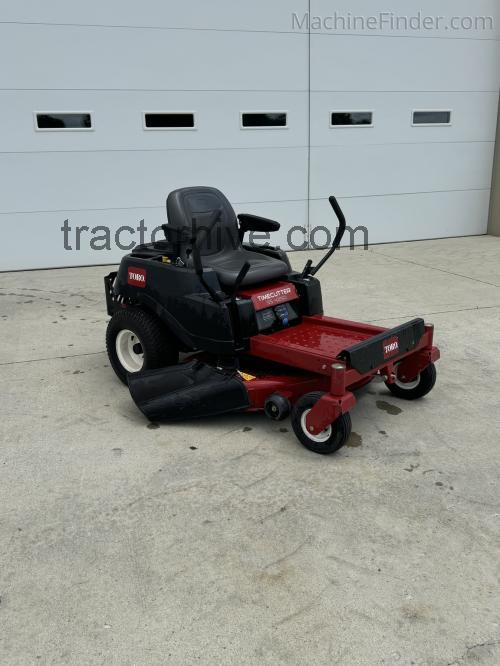

Toro SS4250 74723
Toro SS4250 74723 — TimeCutter SS Series · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Hover a source tag to verify
Overview
ManufacturerToroReference
Zero-turn mowerReference
Original price was $3,199 in 2015Reference
Two-wheel driveReference
Power steeringReference
open operator stationReference
Engine
24.5HP Loncin 708cc 2-cyl gasolineReference
Fuel tank11.4 LReference
Loncin LC2P77FReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement43.2 ciReference
Bore/Stroke77 x 76 mmReference
Power (net)12.5 kWReference
Power (gross)18.3 kWReference
StarterelectricReference
Starter volts12Reference
Oil capacity2.0 LReference
SparkplugNGK BPR6ESReference
Sparkplug gap0.762 mmReference
Transmission
hydrostaticReference
TransmissionHydro-Gear ZT-2100Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Mid PTOindependentReference
ClutchelectricReference
Dimensions
Front tire11x4Reference
Rear tire18x7.5Reference
Lawn/turf front11x4Reference
Lawn/turf rear18x7.5Reference
Length185 cmReference
Height102 cmReference
Front axleCastersReference
Toro SS4250 attachments
42" mid-mount mower deckReference
Electrical
GroundnegativeReference
Battery volts12Reference
42" Mower deck
Typemid-mount ToroReference
Type2-blade with manual lever liftReference
Cutting width106 cmReference
Overall width136 cmReference
Cut height3 to 11 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
