Lawn Tractor · 2011Unverified
Toro SS5000 74630
Toro SS5000 74630 — Model year 2011-20122013-20142015 · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Hover a source tag to verify
Overview
ManufacturerToroReference
Zero-turn mowerReference
Original price was $3,199 in 2011Reference
Two-wheel driveReference
Power steeringReference
open operator stationReference
Engine
22HP Kawasaki 726cc 2-cyl gasolineReference
Fuel tank11.4 LReference
Kawasaki FR651VReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement44.3 ciReference
Bore/Stroke78 x 76 mmReference
Power (gross)16.4 kWReference
StarterelectricReference
Starter volts12Reference

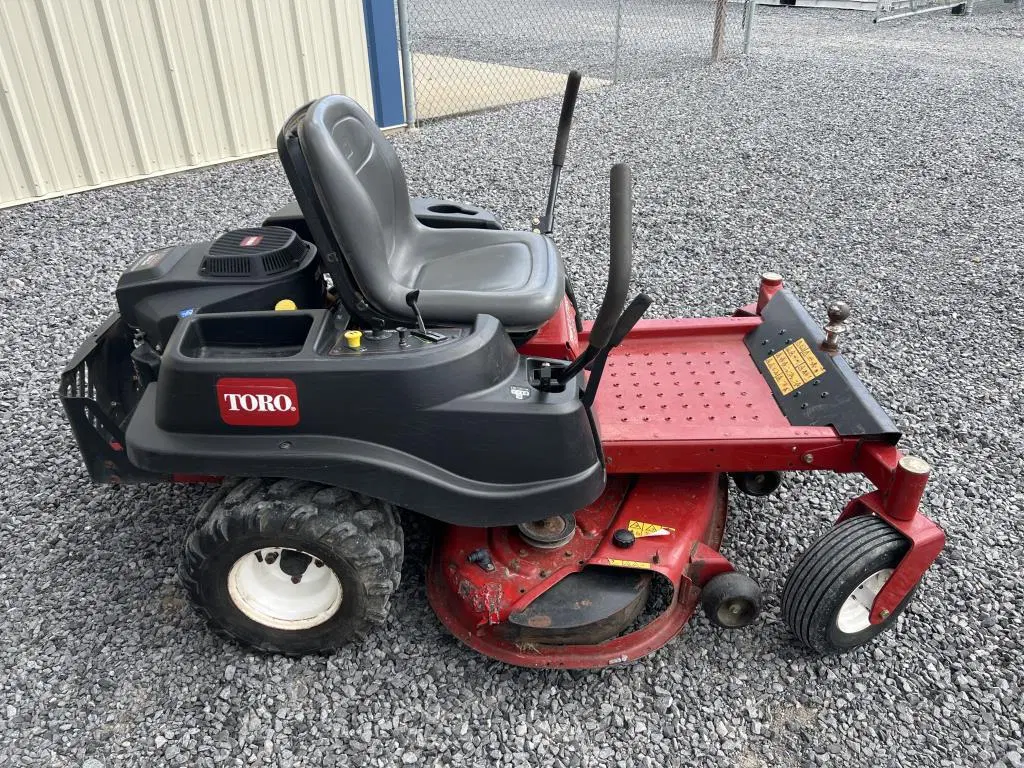

Image courtesy of Mark MeadowsReference
Transmission
hydrostaticReference
TransmissionHydro-Gear ZT-2200Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Mid PTOindependentReference
ClutchelectricReference
Dimensions
Front tire13x5Reference
Rear tire18x9.5Reference
Lawn/turf front13x5Reference
Lawn/turf rear18x9.5Reference
Length185 cmReference
Height102 cmReference
Front axleCastersReference
Toro SS5000 attachments
50" mid-mount mower deckReference
SS5000 Serial Numbers
2011311000001Reference
2012312000001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
50" Mower deck
Typemid-mount ToroReference
Type3-blade with manual lever liftReference
Cutting width127 cmReference
Overall width160 cmReference
Cut height3 to 11 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
