Lawn Tractor · 2011Unverified

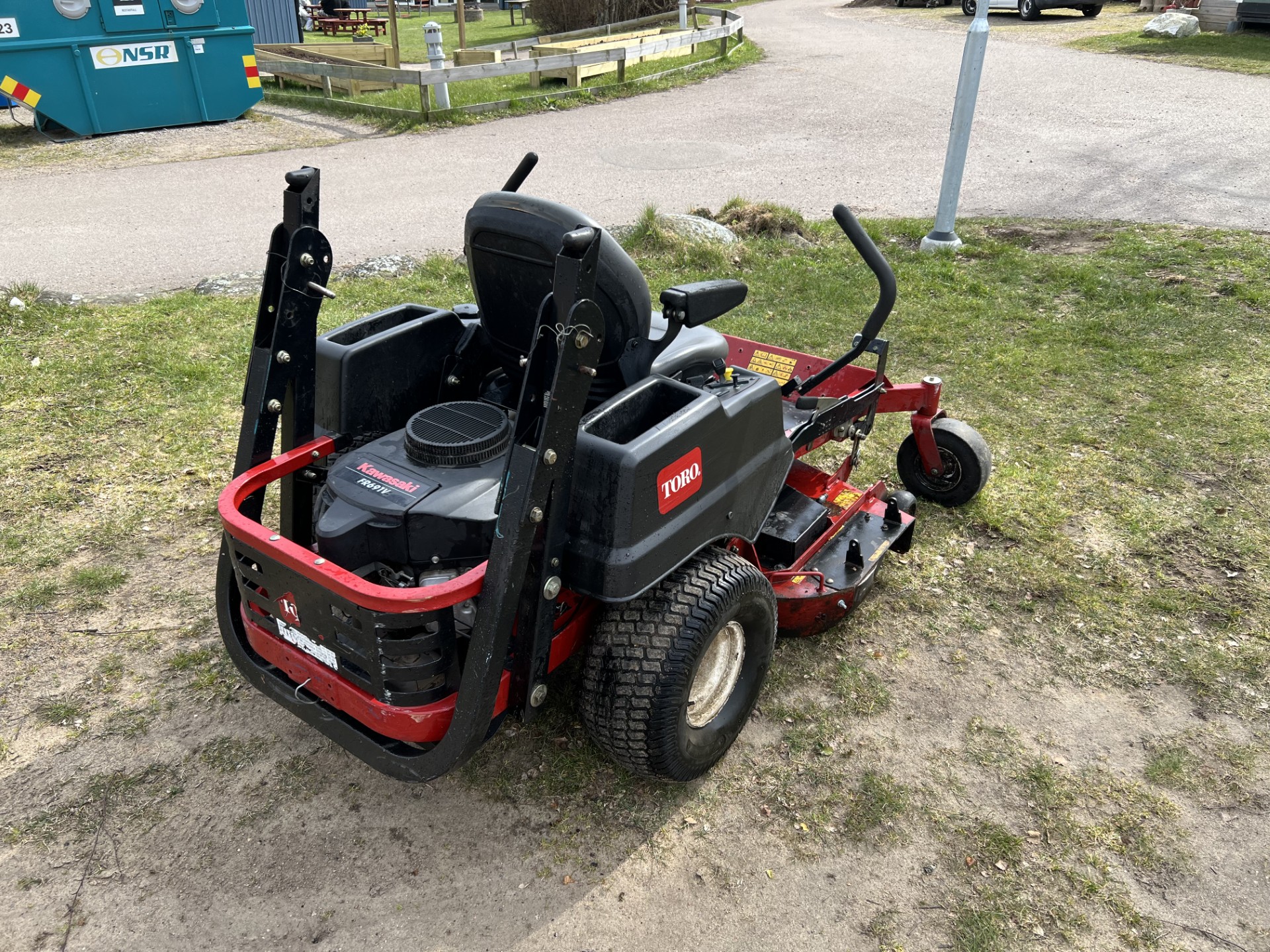

Toro ZX5420 74842
Toro ZX5420 74842 — Titan Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Hover a source tag to verify
Overview
ManufacturerToroReference
Zero-turn mowerReference
Two-wheel driveReference
Power steeringReference
Two-post foldable ROPS.Reference
Engine
24HP Kawasaki 726cc 2-cyl gasolineReference
Fuel tank18.9 LReference
Kawasaki FR691VReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement44.3 ciReference
Bore/Stroke78 x 76 mmReference
Power (gross)17.9 kWReference
StarterelectricReference
Starter volts12Reference
Oil capacity2.1 LReference
SparkplugNGK BPR4ESReference
Sparkplug gap0.762 mmReference
Transmission
hydrostaticReference
TransmissionHydro-Gear ZT-2800Reference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Mid PTOindependentReference
ClutchelectricReference
Dimensions
Front tire11x4Reference
Rear tire20x10Reference
Lawn/turf front11x4Reference
Lawn/turf rear20x10Reference
Length199 cmReference
Height (ROPS)185 cmReference
Height (ROPS)116 cmReference
Front axleCasterReference
Toro ZX5420 attachments
54" mid-mount mower deckReference
ZX5420 Serial Numbers
2011311000001Reference
2012312000001Reference
2013313000001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery CCA195Reference
Battery volts12Reference
54" Mower deck
Typemid-mount ToroReference
Type3-blade with manual liftReference
Cutting width137 cmReference
Overall width172 cmReference
Cut height3 to 11 cmReference
Cut positions13Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
