Lawn Tractor · 2009Unverified

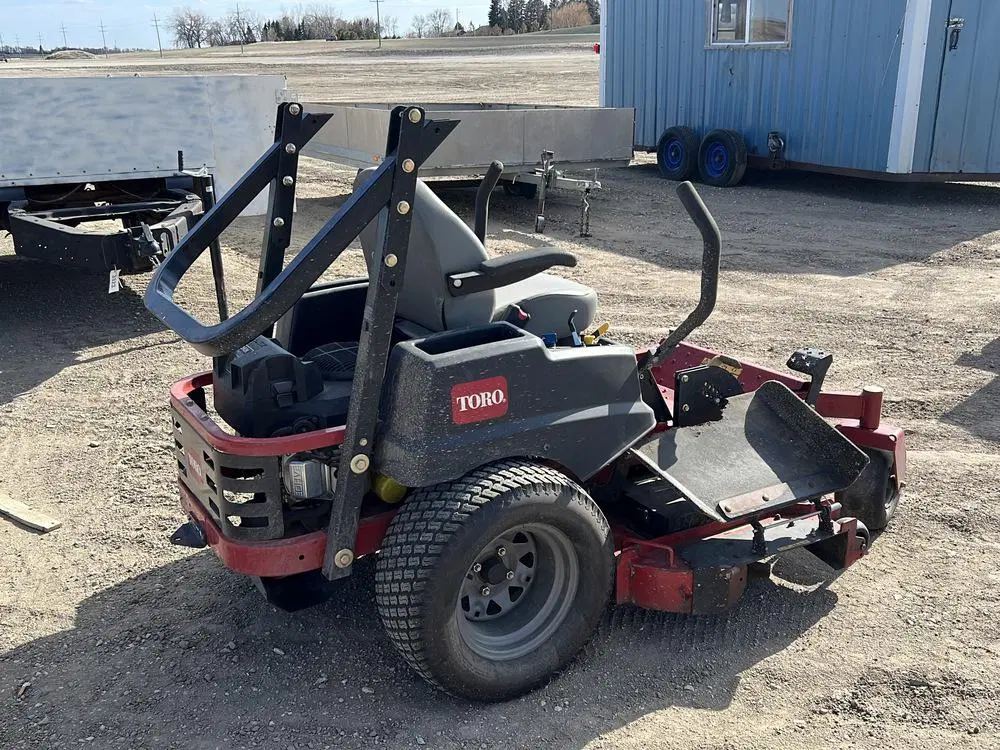

Toro ZX6000 74823
Toro ZX6000 74823 — Titan Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Hover a source tag to verify
Overview
ManufacturerToroReference
Zero-turn mowerReference
Original price was $5,799 in 2009Reference
Two-wheel driveReference
Power steeringReference
open operator stationReference
Engine
25HP Kohler 724cc 2-cyl gasolineReference
Fuel tank18.9 LReference
Kohler SV830Reference
gasolineReference
2-cylinderReference
air-cooledReference
Displacement44.2 ciReference
Bore/Stroke83 x 67 mmReference
Power (gross)18.6 kWReference
StarterelectricReference
Starter volts12Reference
Oil capacity1.7 LReference
SparkplugChampion XC12YCReference
Sparkplug gap0.762 mmReference
Transmission
hydrostaticReference
TransmissionHydro-Gear ZT-2800Reference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Mid PTOindependentReference
ClutchelectricReference
Dimensions
Front tire11x4Reference
Rear tire20x10Reference
Lawn/turf front11x4Reference
Lawn/turf rear20x10Reference
Length199 cmReference
Height109 cmReference
Front axleCasterReference
Toro ZX6000 attachments
60" mid-mount mower deckReference
Electrical
GroundnegativeReference
Battery CCA195Reference
Battery volts12Reference
60" Mower deck
Typemid-mount ToroReference
Type3-blade with manual liftReference
Cutting width152 cmReference
Overall width190 cmReference
Cut height3 to 11 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
