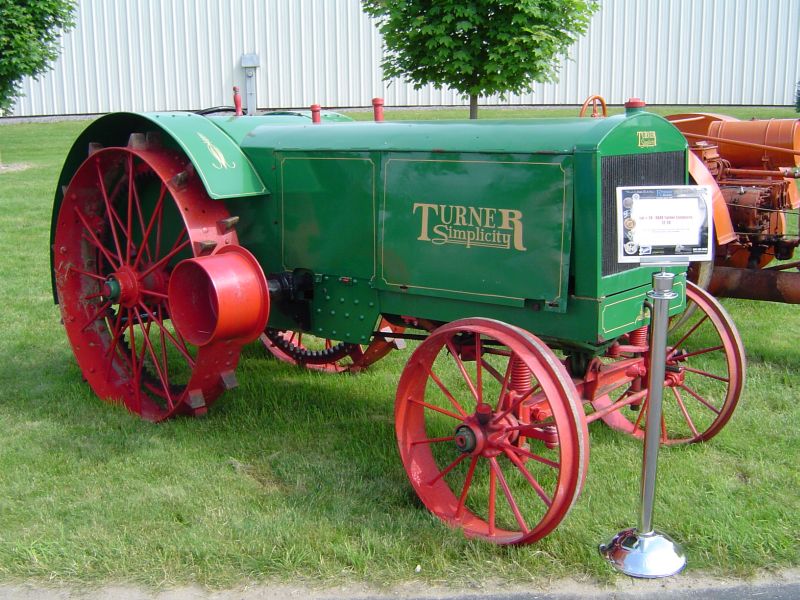

The Turner-Simplicity 12-20 is a compact tractor, with a rated output of 12 hp. It was manufactured from 1915 to 1919 and features a 4-cylinder liquid-cooled engine, driving through two-wheel drive with a 2-speed gearbox. The listed weight of the tractor is 1814 kg, and it is suitable for jobs covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Weight
1814 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
12 hp
Recorded weight
1814 kg
Transmissions
2-speed gear
Production years
1915-1919
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerTurner-SimplicityReference
Standard-tread tractorReference
Built in Port Washington, Wisconsin, USAReference
Original price was $1620 in 1918Reference
Two-wheel driveReference
Final drivesbull gearReference
Manual steeringReference
Open operator station.Reference
Engine
Waukesha 3.8L 4-cyl keroseneReference
Fuel tank56.8 LReference
Aux. fuel18.9 LReference
Drawbar (claimed)8.9 kWReference
Belt (claimed)14.9 kWReference
Plows2-3 (14 inch)Reference
WaukeshaReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke95 x 133 mmReference
Rated RPM1000Reference
Starter typemanualReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Wheelbase203 cmReference
Weight1814 kgReference
Front tire6x30Reference
Rear tire54x10Reference
Ag front6x30 (steel)Reference
Ag rear54x10 (steel)Reference
Length325 cmReference
Width172 cmReference
Height152 cmReference
Shipping weight1814 kgReference
Front tread121 cmReference
Rear tread121 cmReference
Capacities
Diameter35 cmReference
Width17 cmReference
RPM600Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
