Tractor · 1918Unverified
Turner-Simplicity 14-25

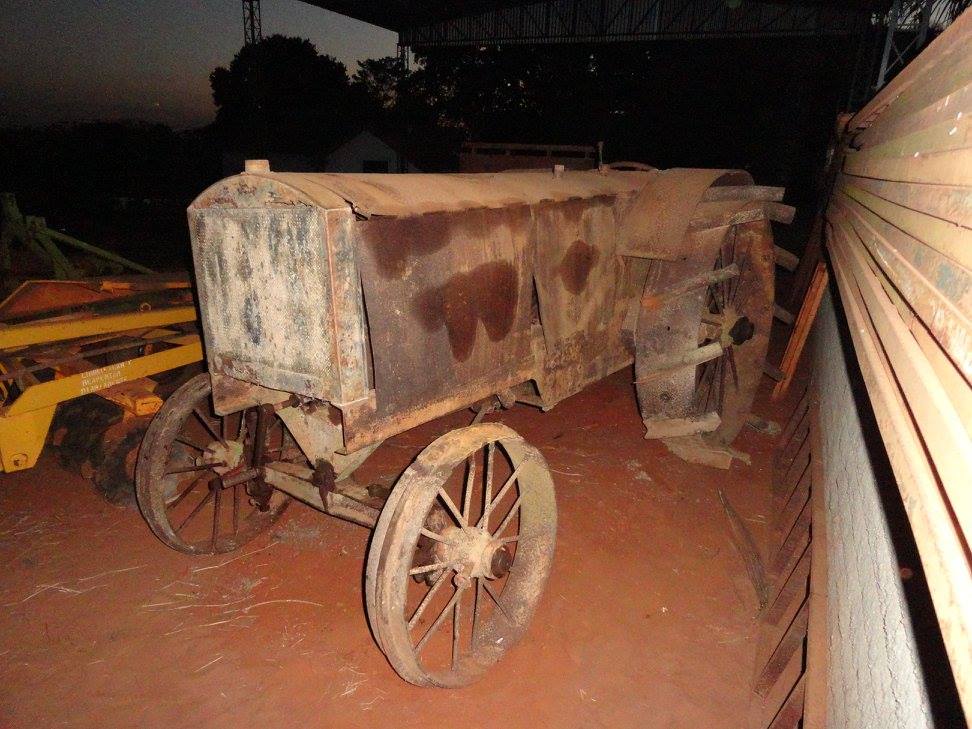

Turner-Simplicity 14-25 — Standard-tread tractor · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
1950 kg
Hover a source tag to verify
Overview
ManufacturerTurner-SimplicityReference
Standard-tread tractorReference
Built in Port Washington, Wisconsin, USAReference
Two-wheel driveReference
Final drivesbull gearReference
Manual steeringReference
Open operator station.Reference
Engine
Buda 5.1L 4-cyl keroseneReference
Fuel tank56.8 LReference
Aux. fuel18.9 LReference
Drawbar (claimed)10.4 kWReference
Belt (claimed)18.6 kWReference
Plows2-3 (14 inch)Reference
BudaReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement5.1 LReference
Bore/Stroke108 x 140 mmReference
Rated RPM1000Reference
Starter typemanualReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Wheelbase203 cmReference
Weight1950 kgReference
Front tire6x30Reference
Rear tire54x10Reference
Ag front6x30 (steel)Reference
Ag rear54x10 (steel)Reference
Length325 cmReference
Width172 cmReference
Height152 cmReference
Shipping weight1950 kgReference
Front tread121 cmReference
Rear tread121 cmReference
Capacities
Diameter35 cmReference
Width17 cmReference
RPM600Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
