Tractor · 1916Unverified

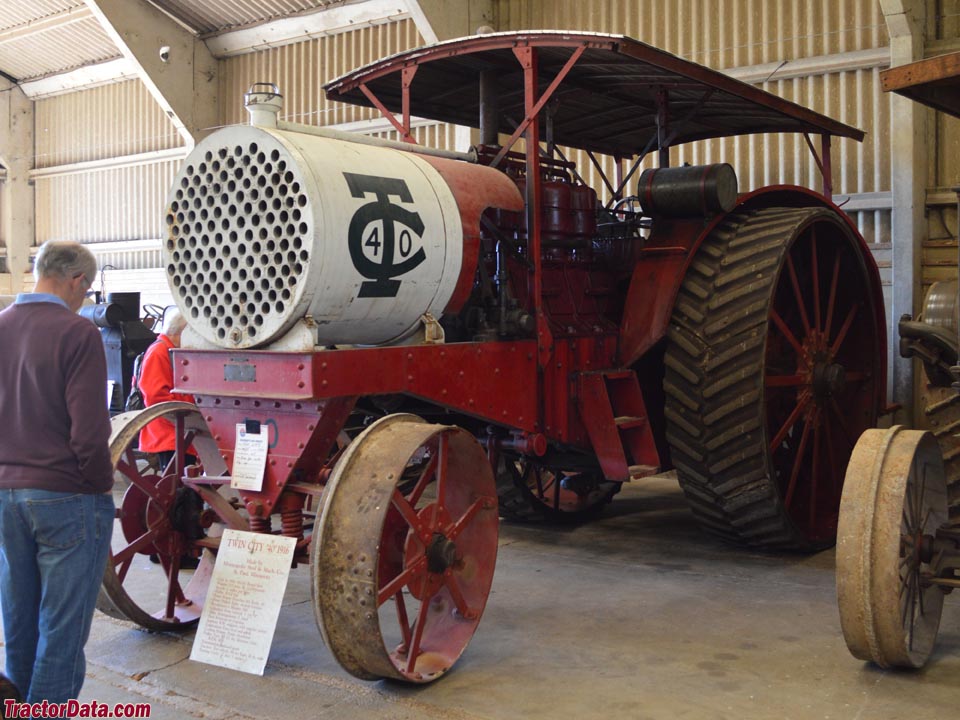

Twin City 40-65

Twin City 40-65 — Standard-tread tractor · 40 hp. Reference specifications; pending source verification.

The Twin City 40-65 is a tractor with a rated power output of approximately 40 hp, positioning it at the lower end of its class. It was manufactured from 1916 to 1925. The 40-65 is equipped with a 4-cylinder liquid-cooled engine and a 1-speed gearbox, paired with two-wheel drive. It has a listed operating weight of 10750 kg and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
40 hp
Max power
37.1 kW
Weight
10750 kg

Catalogue coverage

Variants represented
2
Richest spec table
40 rows
Recorded power
40 hp
Recorded weight
10750 kg
Transmissions
1-speed gear
Production years
1916-1925
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerTwin CityReference
Standard-tread tractorReference
Built in Minneapolis, Minnesota, USAReference
Total built825Reference
Original price$3,250Reference
Two-wheel driveReference
Manual steeringReference

Engine

Twin City 24.4L 4-cyl keroseneReference
Fuel tank359.6 LReference
Aux. fuel37.9 LReference
Drawbar (claimed)29.8 kWReference
Belt (claimed)48.5 kWReference
Drawbar (tested)37.1 kWReference
Belt (tested)48.9 kWReference
Twin CityReference
keroseneReference
4-cylinderReference
liquid-cooled inlineReference
Displacement24.4 LReference
Bore/Stroke184 x 229 mmReference
Rated RPM535Reference
Coolant capacity492.1 LReference
Belt power (max)48.9 kWReference
Max power37.1 kWReference

Transmission

1-speed gearReference
TypegearReference
Gears1 forward and reverseReference
Clutchmechanical contracting bandReference

Dimensions

Weight10750 kgReference
Front tire42x12Reference
Rear tire84x24Reference
Ag front42x12 (steel)Reference
Ag rear84x24 (steel)Reference
Length609 cmReference
Height309 cmReference

40-65 Serial Numbers

Location:front frameReference

Test results

Kerosene 1-speed 2WDAugust 5 - 14, 1920Link: Nebraska Tractor Test 48 fileReference
Belt fuel use (max)29.9 l/hourReference
Drawbar performanceReference
Max pull4907 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
