Tractor · 1916Unverified

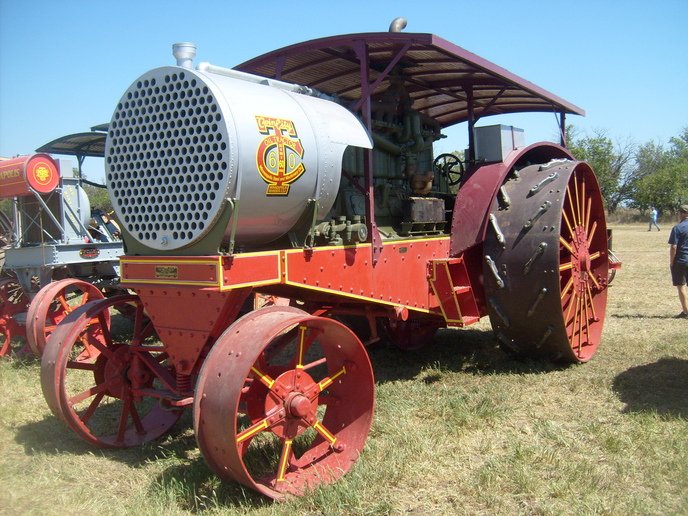

Twin City 60-90
Twin City 60-90 — Standard-tread tractor · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
12292 kg
Hover a source tag to verify
Overview
ManufacturerTwin CityReference
Standard-tread tractorReference
Built in Minneapolis, Minnesota, USAReference
Total built20Reference
Original price was $4,200 in 1925Reference
Two-wheel driveReference
Manual steeringReference
Open operator station with canopy.Reference
Engine
Twin City 36.5L 6-cyl keroseneReference
Fuel tank325.5 LReference
Engine82.0 kWReference
Drawbar (claimed)44.7 kWReference
Belt (claimed)67.1 kWReference
Plows12 (14-inch)Reference
Twin CityReference
keroseneReference
6-cylinderReference
liquid-cooled inlineReference
Displacement36.5 LReference
Bore/Stroke184 x 229 mmReference
Power82.0 kWReference
Rated RPM500Reference
Coolant capacity454.3 LReference
Transmission
1-speed gearReference
TypegearReference
Gears1 forward and reverseReference
Dimensions
Weight12292 kgReference
Front tire42x12Reference
Rear tire84x30Reference
Ag front42x12 (steel)Reference
Ag rear84x30 (steel)Reference
Length666 cmReference
Width280 cmReference
Height309 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
