Tractor · 1935Unverified

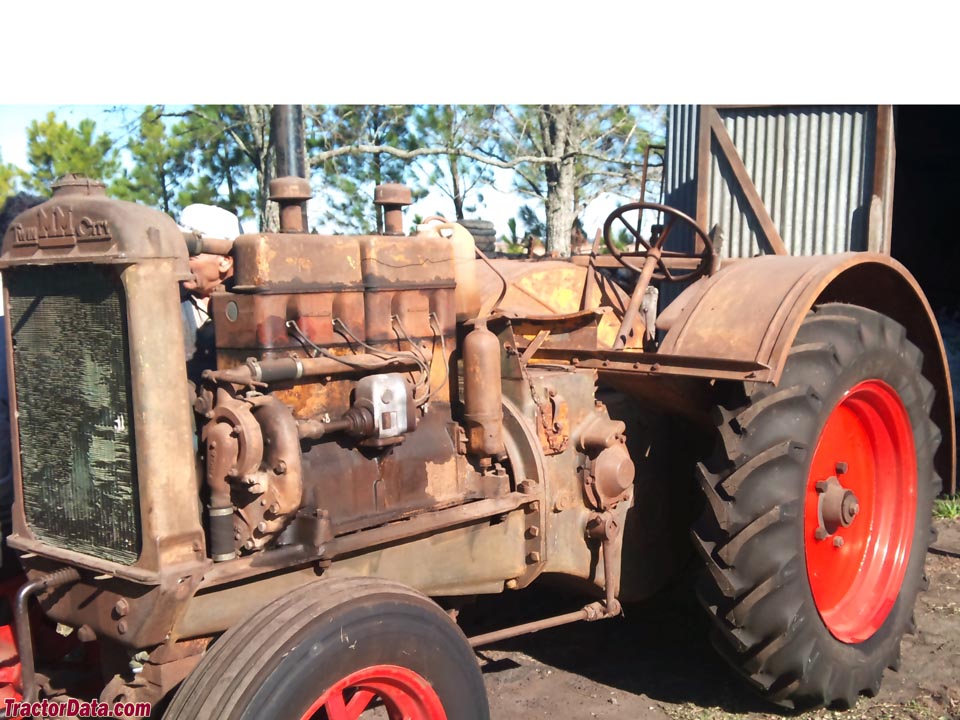

Twin City FTA
Twin City FTA — Standard-tread tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Max power
33.3 kW
Weight
3138 kg
Hover a source tag to verify
Overview
ManufacturerTwin City (a part of Minneapolis-Moline)Reference
Standard-tread tractorReference
Built in Minneapolis, Minnesota, USAReference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Engine
Minneapolis 6.6L 4-cyl gasolineReference
Fuel tank113.6 LReference
Aux. fuel13.2 LReference
Drawbar (tested)26.3 kWReference
Minneapolis GEReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke117 x 152 mmReference
Rated RPM1075Reference
Coolant capacity37.9 LReference
Max power33.3 kWReference
Max power26.3 kWReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (tested)33.3 kWReference
Dimensions
Weight3138 kgReference
Operating weight3138 kgReference
FTA Serial Numbers
1935154300Reference
1936155382Reference
1937156248Reference
1938156909Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter40 cmReference
Width19 cmReference
RPM650Reference
Test results
Distillate 3-speed 2WDSeptember 10 - 18, 1936Link: Nebraska Tractor Test 270 fileReference
PTO performanceReference
Fuel use16.7 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull2142 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
