Tractor · 1930Unverified
Twin City MT
Twin City MT — Row-Crop tractor · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Max power
13.5 kW
Weight
2204 kg
Hover a source tag to verify
Overview
ManufacturerTwin City (a part of Minneapolis-Moline)Reference
Row-Crop tractorReference
Built in Minneapolis, Minnesota, USAReference
Total built420Reference
Two-wheel driveReference

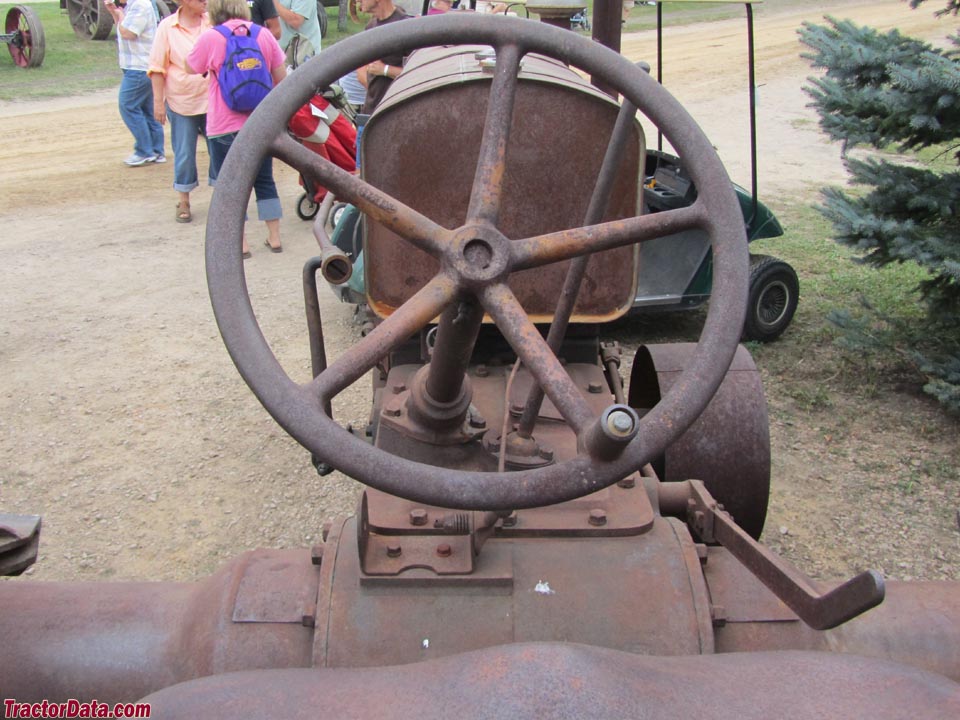

SteeringmanualReference
Open operator station.Reference
Engine
Minneapolis 4.6L 4-cyl keroseneReference
Fuel tank79.5 LReference
Aux. fuel9.5 LReference
Drawbar (claimed)9.7 kWReference
Belt (claimed)18.6 kWReference
Plows2-3 (14-inch)Reference
Drawbar (tested)13.5 kWReference
Belt (tested)19.9 kWReference
MinneapolisReference
keroseneReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement4.6 LReference
Bore/Stroke108 x 127 mmReference
Fuel systemSchebler TT carburetorReference
Rated RPM1000Reference
Firing order1-3-4-2Reference
Starter typehand-crankReference
Coolant capacity22.7 LReference
Belt power (max)19.9 kWReference
Max power13.5 kWReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Clutchdry discReference
Dimensions
Weight2204 kgReference
Front tire25x5.75Reference
Rear tire42x10Reference
Ag front25x5.75 (steel)Reference
Ag rear42x10 (steel)Reference
Length363 cmReference
Width236 cmReference
Height163 cmReference
MT Serial Number Location
Left side of tractor.Reference
Capacities
Diameter35 cmReference
Width17 cmReference
RPM715Reference
Speed798.58 meters/minReference
Test results
Kerosene 3-speed 2WDSeptember 30 - October 8, 1931Link: Nebraska Tractor Test 197 fileReference
Belt fuel use (max)9.8 l/hourReference
Drawbar performanceReference
Gear 1 used for power test.Reference
Max pull1310 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
