Tractor · Unverified

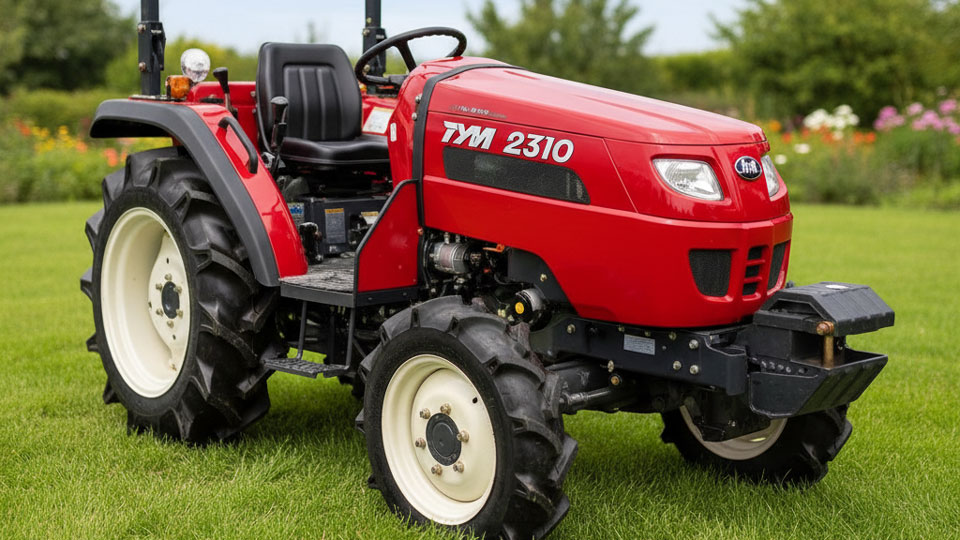

TYM 2310
TYM 2310 · 18 hp. Reference specifications; pending source verification.
The TYM 2310 is a tractor rated at 18 hp — making it one of the more compact options in its class. Power comes from a 3-cylinder diesel liquid-cooled engine, driving through a hydrostatic transmission. Listed weight is 1360 kg, and it is aimed at jobs of around up to 200 ac. Recorded specifications in UK and US units are listed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1360 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
18 hp
Recorded weight
1360 kg
Transmissions
12-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerTYMReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Engine
Dae Dong 1.3L 3-cyl dieselReference
Engine17.3 kWReference
Dae Dong TD1300Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Power17.3 kWReference
Rated RPM2700Reference
Oil capacity5.7 LReference
Coolant capacity7.0 LReference
Transmission
12-speedReference
Transmissionsync shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)13.7 kWReference
Hydraulic system32.2 LReference
Capacity32.2 LReference
Pump flow23.1 lpmReference
Total flow35.6 lpmReference
Rear TypeIReference
Rear lift (at ends)942 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Capacities
Fuel32.9 LReference
Dimensions
Wheelbase162 cmReference
Weight1360 kgReference
Front tire7-16Reference
Rear tire11.2-24Reference
Ag front7-16Reference
Ag rear11.2-24Reference
Length307 cmReference
Width132 cmReference
Height233 cmReference
Ground clearance30 cmReference
Electrical
Charging amps50Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
