Tractor · 2021Unverified

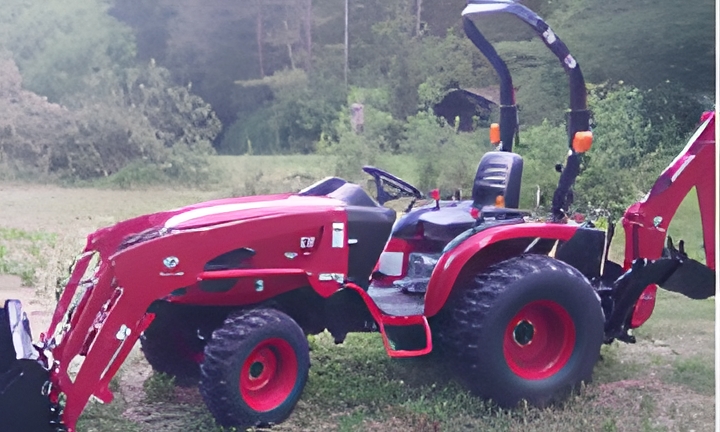

TYM 2610
TYM 2610 — 1 Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
955 kg
Hover a source tag to verify
Overview
ManufacturerTYMReference
Sub-Compact Utility tractorReference

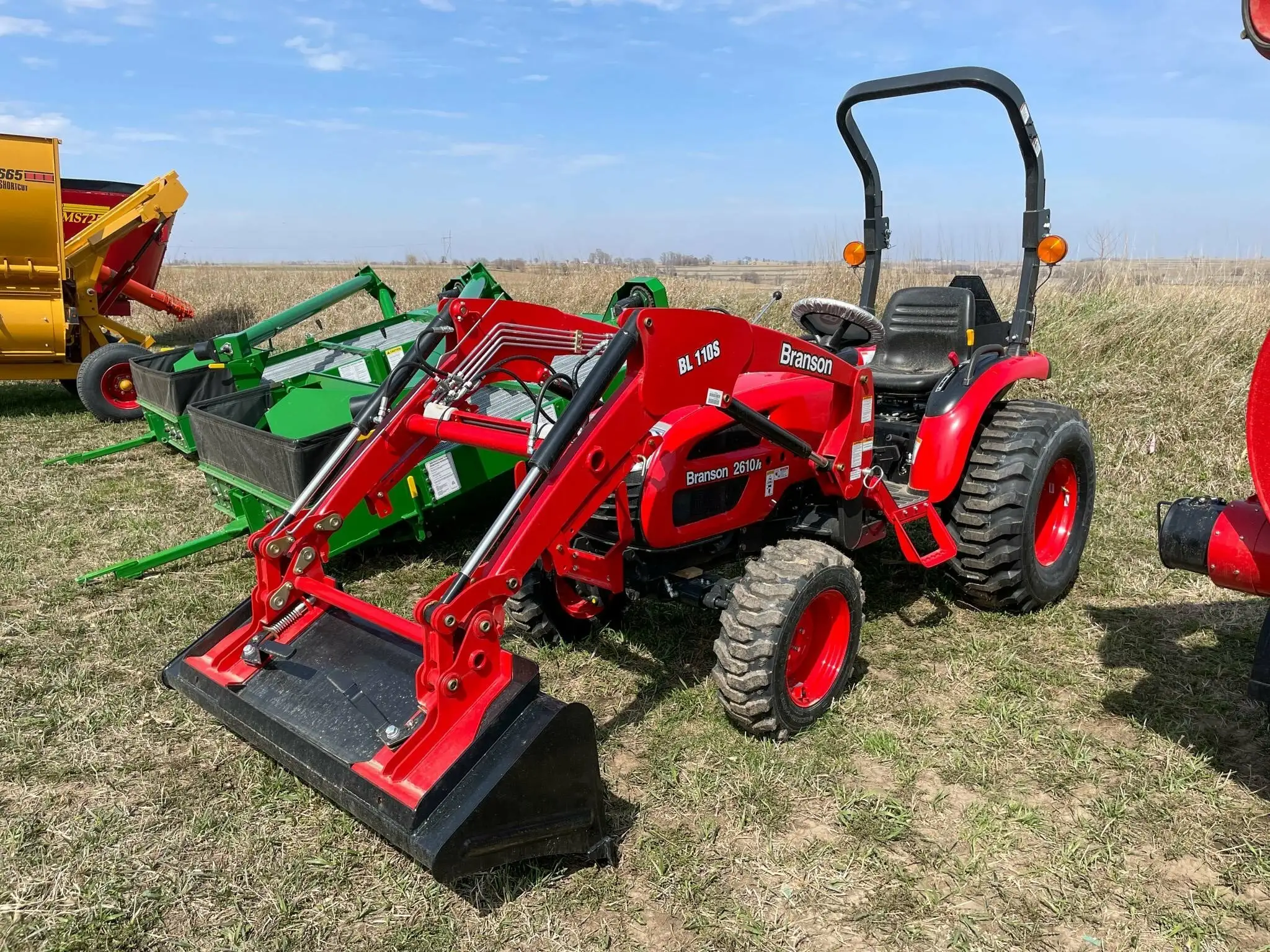

The TYM 2610 was also sold as the Branson 2610h before the Branson name was dropped.Reference
Four-wheel driveReference
Power steeringReference
Engine
TYM 1.2L 3-cyl dieselReference
Fuel tank22.7 LReference
Engine (gross)17.9 kWReference
TYM A1100N2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
EmissionsTier IVReference
Power (gross)17.9 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
StarterelectricReference
Starter volts12Reference
Oil capacity3.0 LReference
Coolant capacity5.0 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)13.4 kWReference
Typeopen centerReference
Valves2Reference
SCV flow11.7 lpmReference
Total flow28.0 lpmReference
Steering flow16.3 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)679 kgReference
Rear lift (at 24"/610mm)441 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase166 cmReference
Weight955 kgReference
Front tire6-12Reference
Rear tire9.5-16Reference
Weight123 kgReference
Standard tires (ag)Front: 6-12. Rear: 9.5-16Reference
Optional tires (ag)Front: 7.16. Rear: 11.2-20Reference
Lawn/turf front23x8.20-12Reference
Lawn/turf rear33x12.50-16.5Reference
Industrial front25x8.50-14Reference
Industrial rear14-17.5Reference
Length312 cmReference
Width136 cmReference
Height (ROPS)232 cmReference
Ground clearance38 cmReference
TYM 2610 attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps60Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount TYM BM60LReference
Type3-bladeReference
Cutting width152 cmReference
Cut height2 to 10 cmReference
TYM BH100 Backhoe
Backhoe typeTYM BH100 BackhoeReference
Transport height180 cmReference
Bucket width22 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Digging depth192 cmReference
Reach from pivot274 cmReference
Loading height159 cmReference
Bucket Rotation180°Reference
Swing Arc140°Reference
Speeds
With 11.2-20 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
