Tractor · Unverified

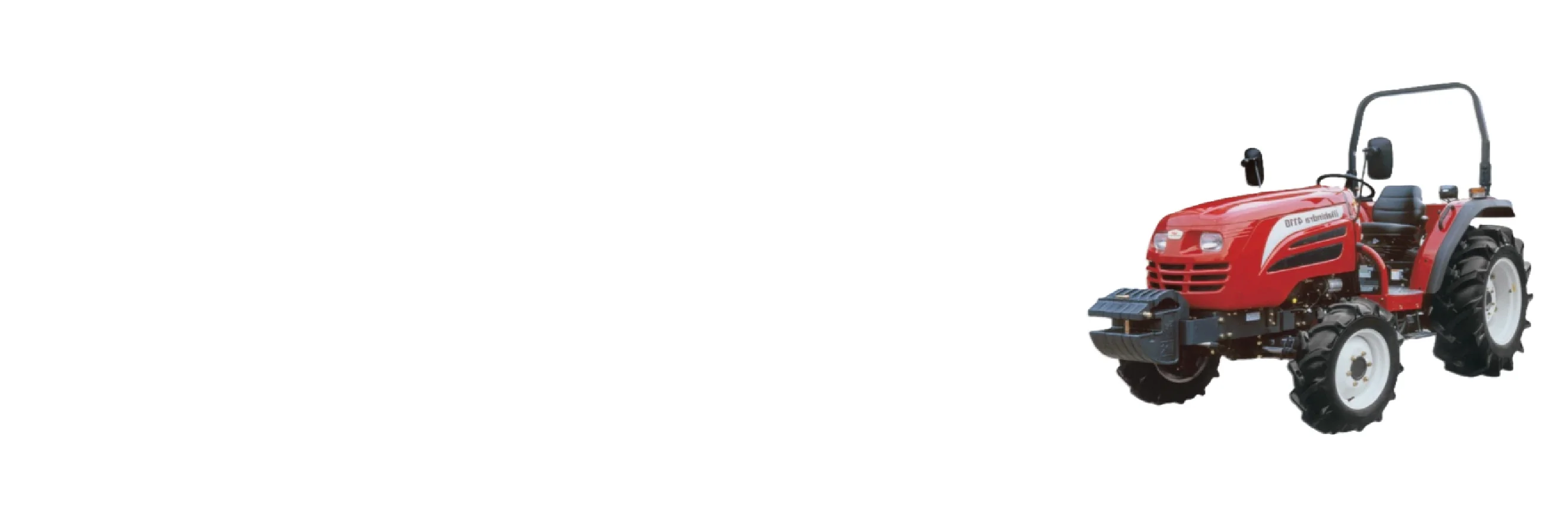

TYM 4110
TYM 4110 · 31 hp. Reference specifications; pending source verification.
The TYM 4110 is a tractor with a rated output of 31 hp — making it one of the more compact options in its class. It is powered by a 4-cylinder diesel liquid-cooled engine, driving through a hydrostatic transmission. Listed weight is 1796 kg, and it is aimed at jobs of around up to 200 ac. Recorded specifications in UK and US units are listed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
1796 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
31 hp
Recorded weight
1796 kg
Transmissions
12-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerTYMReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Engine
Daedong 2.0L 4-cyl dieselReference
Engine29.1 kWReference
Daedong 4A200AReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.0 LReference
Power29.1 kWReference
Rated RPM2700Reference
Oil capacity7.9 LReference
Coolant capacity9.0 LReference
Transmission
12-speedReference
Transmissionsync shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)23.3 kWReference
Hydraulic system34.1 LReference
Capacity34.1 LReference
Rear valves1Reference
Front valves1Reference
Pump flow30.8 lpmReference
Total flow47.5 lpmReference
Rear TypeIReference
Rear lift (at ends)1295 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000/1400Reference
Capacities
Fuel32.9 LReference
Dimensions
Wheelbase180 cmReference
Weight1796 kgReference
Front tire8-16Reference
Rear tire13.6-24Reference
Ag front8-16Reference
Ag rear13.6-24Reference
Length322 cmReference
Width150 cmReference
Height241 cmReference
Ground clearance33 cmReference
Electrical
Charging amps50Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
