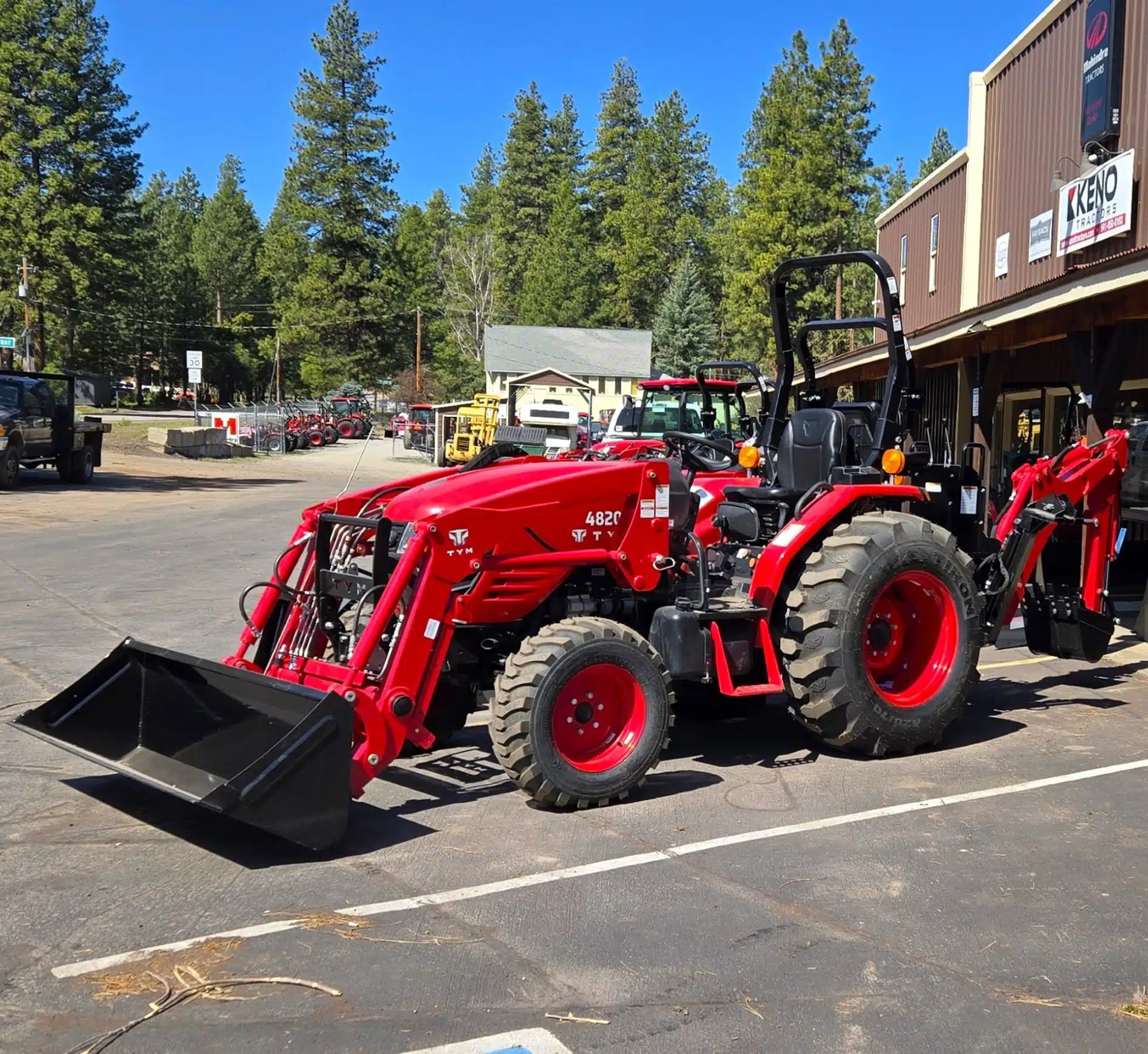

TYM 4820
TYM 4820 — 4 Series · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
3831 to 4349 pounds
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Engine
TYM 2.3L 4-cyl dieselReference
Engine (gross)35.8 kWReference
TYM T2300N2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
EmissionsTier IVReference
Power (gross)35.8 kWReference
Rated RPM2600Reference
Oil capacity4.5 LReference
ROPS Coolant capacity5.9 LReference
Cab Coolant capacity7.9 LReference
Transmission
16-speed synchronized shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
Oil capacity39.0 LReference
TypehydrostaticReference
Gearsinfinite forward and reverse (4-range)Reference
Oil capacity42.0 LReference
PTO & Hydraulics
PTO (claimed)28.6 kWReference
Shuttle Hydraulic system39.0 LReference
Hydro Hydraulic system42.0 LReference
Typeopen centerReference
Shuttle Capacity39.0 LReference
Hydro Capacity42.0 LReference
Valves4Reference
Pump flow43.1 lpmReference
Total flow62.5 lpmReference
Steering flow19.7 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1499 kgReference
Rear lift (at 24"/610mm)1099 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel44.7 LReference
Front axle6.4 LReference
Dimensions
Wheelbase180 cmReference
Weight3831 to 4349 poundsReference
Front tire9.5-16Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 9.5-16. Rear: 13.6-26Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear41x14-20Reference
Lawn/turf front29x12.5-15Reference
Lawn/turf rear44x18-20Reference
Industrial front12-16.5Reference
Industrial rear17.5L-24Reference
Length323 cmReference
Width164 cmReference
Height (ROPS)249 cmReference
Height (cab)246 cmReference
ROPS Weight1737 kgReference
Cab Weight1972 kgReference
Ground clearance39 cmReference
TYM 4820 attachments

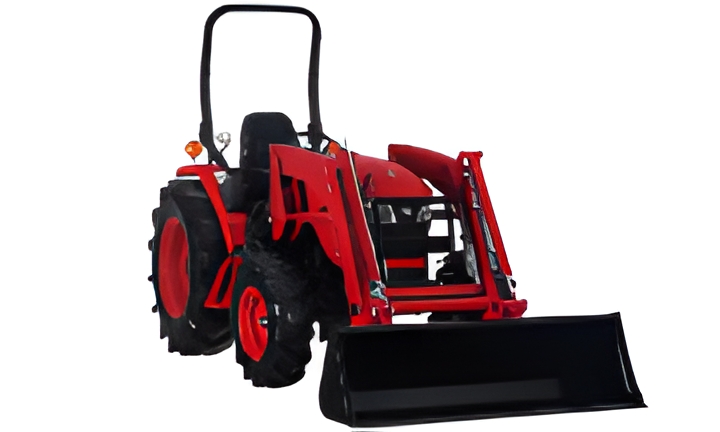

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps50Reference
Cab Charging amps70Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
TYM BH200 Backhoe
Backhoe typeTYM BH200 BackhoeReference
Transport height216 cmReference
Bucket width22 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Digging depth231 cmReference
Reach from pivot313 cmReference
Loading height228 cmReference
Bucket Rotation149°Reference
Swing Arc180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
