Tractor · 2009Unverified

TYM T1003

Name: TYM T1003
Brand: TYM

TYM T1003 — Utility tractor · 100 hp. Reference specifications; pending source verification.

The TYM T1003 is a tractor with a rated output of 100 hp, placing it in the middle of its class for power. It was first produced in 2009. The T1003 features a 4-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. Its listed weight is 8069 to 8124 pounds, and it is intended for use on plots of around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Max power

99.5 hp

Weight

8069 to 8124 pounds

Catalogue coverage

Variants represented

Richest spec table

97 rows

Recorded power

100 hp

Recorded weight

3685 kg

Transmissions

32-speed power shuttle

Production years

2009-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerTYMReference

Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Cab standard with heat and air-conditioning.Reference

Variants

T1003S12-speedReference

Engine

Caterpillar 4.4L 4-cyl dieselReference

Engine (gross)74.2 kWReference

Caterpillar 3054C-DITReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Depending on market, this engine is also branded as a Perkins 1104D-44TA.Reference

Displacement4.4 LReference

Power (gross)74.2 kWReference

Fuel systemdirect injectionReference

Air cleanerdual dry elementReference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity6.4 LReference

Coolant capacity11.0 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Cooling systemliquid-cooledReference

Transmission

32-speed power shuttleReference

12-speed power shuttleReference

Typepower shuttleReference

Gears32 forward and reverseReference

Clutchwet discsReference

Oil capacity75.0 LReference

Gears12 forward and reverseReference

Transmission TypePower ShuttleReference

forward and reverse optionsPower Shuttle : 32 F and 32 R | Power Shuttle : 12 F and 12 RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)65.8 kWReference

Hydraulic system74.9 LReference

Typedual gear pumpReference

Capacity74.9 LReference

Valves3Reference

Pump flow57.2 lpmReference

Total flow83.3 lpmReference

Steering flow26.1 lpmReference

Rear Type2Reference

Controlposition and draft controlReference

Rear lift (at ends)3111 kgReference

Rear lift (at 24"/610mm)2490 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/750/1000 (1.375)Reference

Rear PTO Type540/1000 (1.375 T1003S)Reference

Capacities

Fuel126.0 LReference

Front axle17.5 LReference

Fuel tank126 LReference

Crankcase oil volume6.8 qtsReference

Dimensions

Wheelbase229 cmReference

Weight8069 to 8124 poundsReference

Front tire13.6-24Reference

Rear tire16.9-34Reference

Ag front13.6-24Reference

Ag rear16.9-34Reference

Length411 cmReference

Width223 cmReference

Height (cab)271 cmReference

Weight3685 kgReference

T1003S Weight3660 kgReference

Ground clearance38 cmReference

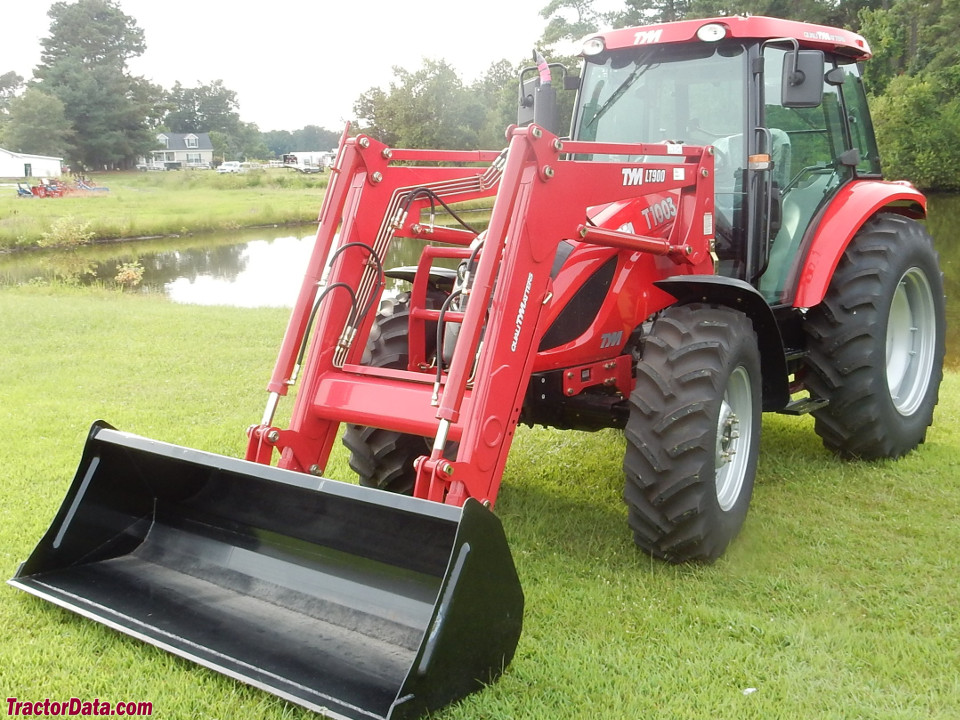

TYM T1003 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps80Reference

Charging volts12Reference

Battery volts12Reference

General

Make & ModelTYMReference

SCV controlJoystickReference

Power

Max Power99.5 hpReference

PTO

PTO Power88.2 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)22 gpmReference

Hydraulics Typedual gear pumpReference

Remote Valves3 ValvesReference

Steering & Implements flow6.9 gpm (15.1 gpm)Reference

Rear Hitch category (SAE designation)Category 2Reference

Rear Hitch maximum lift capacity3,111.6 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over Cab271.8 cmReference

Overall Length411.5 cmReference

Overall Width223.3 cmReference

Overall weight3,685 kgReference

Wheels & tyres

Rear Wheel TypeAg rear - 16.9-34Reference

Front Wheel TypeAg front - 13.6-24Reference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab standard with heat and air-conditioning.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
