Tractor · 2015Unverified

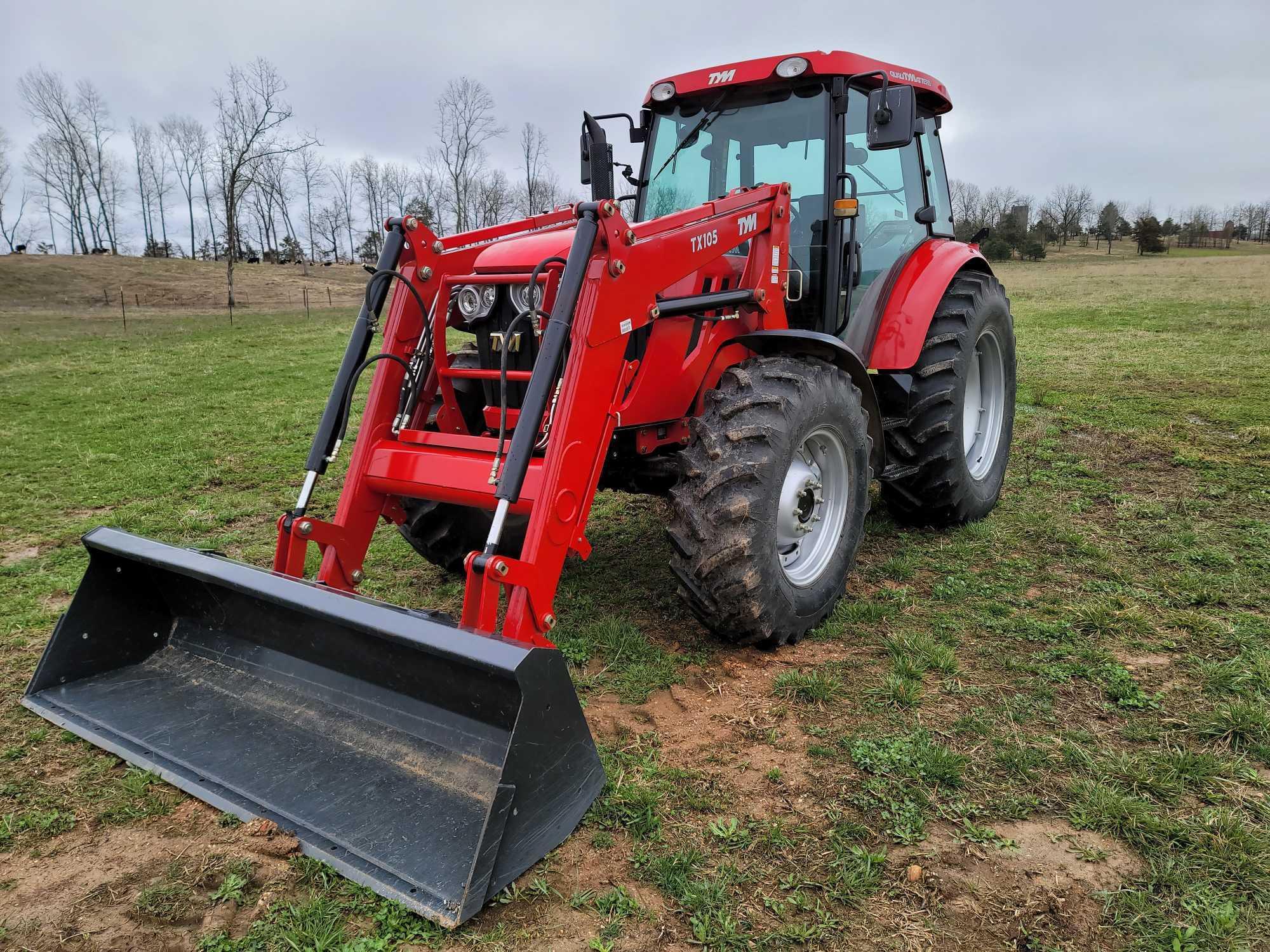

TYM T1054
TYM T1054 — Utility tractor · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
3940 kg
Hover a source tag to verify
Overview
ManufacturerTYMReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
T1054 SC12-speedReference
T1054 SP32-speedReference
Engine
Doosan Infracore 3.4L 4-cyl dieselReference
Fuel tank110.1 LReference
Exhaust fluid (DEF)20.1 LReference
Engine (gross)78.0 kWReference
Doosan Infracore DL03-LEA04Reference
turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooled inlineReference
Displacement3.4 LReference
Bore/Stroke98 x 113 mmReference
EmissionsTier IVReference
Power (gross)78.0 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdryReference
Rated RPM2300Reference
Torque430.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
32-speed two-speed power shiftReference
12-speed power shuttleReference
Typetwo-speed power shiftReference
Gears32 forward and reverseReference
Clutchwet discReference
Four synchronized gears (1-4) in four ranges with two-speed push-button power shift. Left-hand power shuttle. Tractor must be stopped, and clutch used, to shift range.Reference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Four synchronized gears in four ranges with left-hand power shuttle. Tractor must be stopped, and clutch used, to shift range.Reference
PTO & Hydraulics
PTO (claimed)71.2 kWReference
Typeopen centerReference
Valves3Reference
Pump flow59.0 lpmReference
Total flow85.9 lpmReference
Steering flow26.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)3111 kgReference
Rear lift (at ends)4340 kgReference
Rear lift (at 24"/610mm)2490 kgReference
Rear lift (at 24"/610mm)2943 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000 (1.375)Reference
Dimensions
Weight3940 kgReference
Front tire13.6-24Reference
Rear tire16.9-34Reference
Standard tires (ag)Front: 13.6-24. Rear: 16.9-34Reference
Length450 cmReference
Width218 cmReference
Height274 cmReference
Ground clearance46 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
