Tractor · 2019Unverified

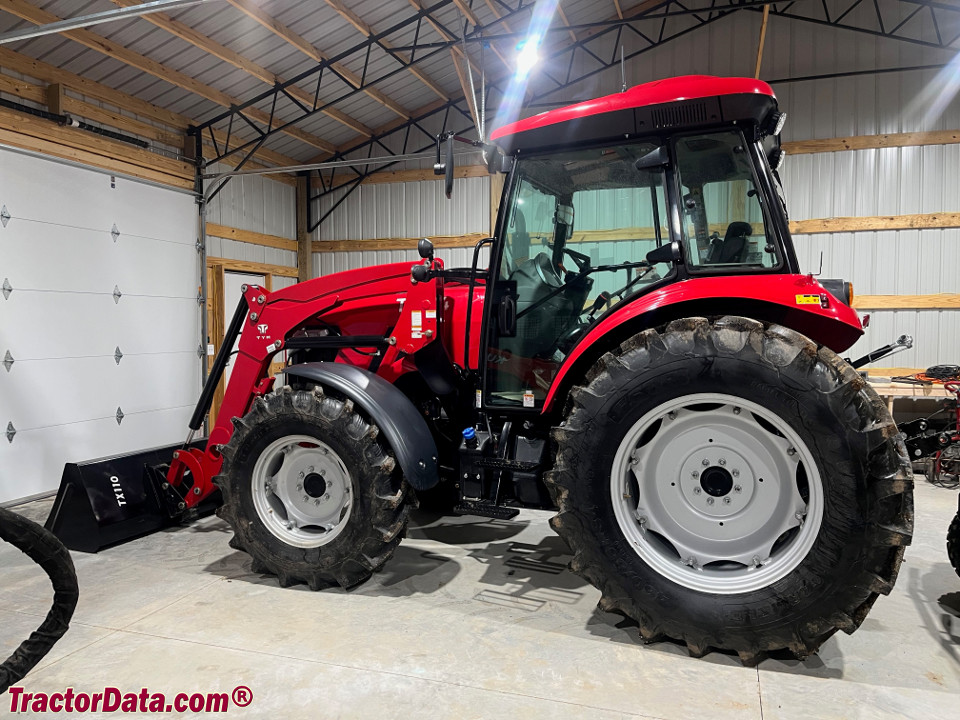

TYM T1104
TYM T1104 — 6 Series · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
3930 kg
Hover a source tag to verify
Overview
ManufacturerTYMReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Doosan 3.4L 4-cyl dieselReference
Fuel tank110.1 LReference
Exhaust fluid (DEF)20.1 LReference
Engine (gross)78.3 kWReference
Doosan DK03-LEA04Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.4 LReference
Bore/Stroke98 x 113 mmReference
Power (gross)78.3 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdryReference
Rated RPM2300Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity16.0 LReference
Transmission
32-speed power shuttleReference
Typepower shuttleReference
Gears32 forward and reverseReference
Clutchwet discReference
Oil capacity75.0 LReference
PTO & Hydraulics
PTO (claimed)71.2 kWReference
Typeopen centerReference
Pump flow53.4 lpmReference
Total flow80.6 lpmReference
Steering flow26.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)3111 kgReference
Rear lift (at 24"/610mm)2490 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase230 cmReference
Weight3930 kgReference
Front tire380/85R24Reference
Rear tire460/85R34Reference
Standard tires (ag)Front: 380/85R24. Rear: 460/85R34Reference
Length420 cmReference
Width218 cmReference
Height (cab)271 cmReference
Ground clearance46 cmReference
TYM T1104 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging amps110Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
