Tractor · 2017Unverified

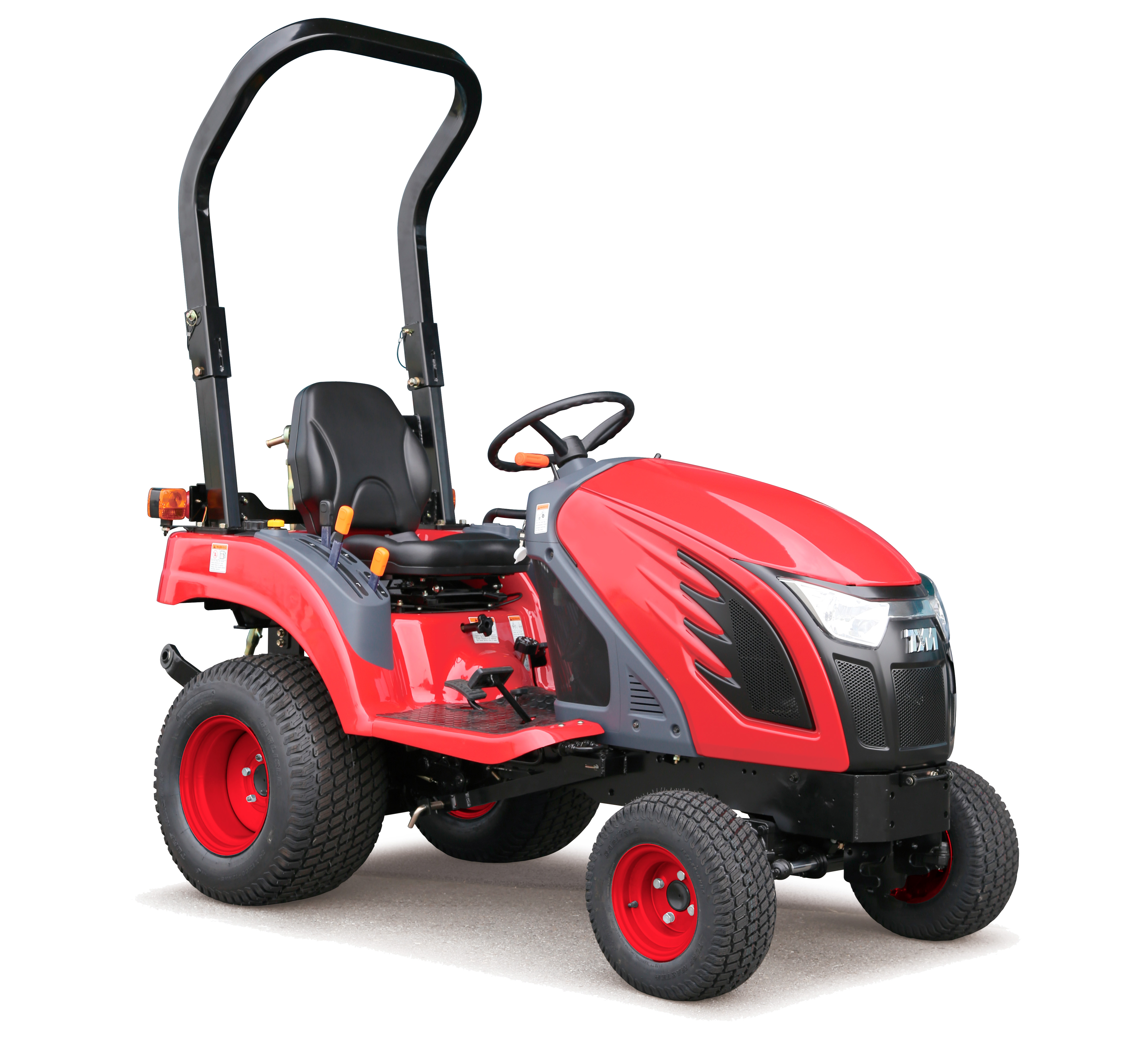

TYM T194
TYM T194 — Sub-Compact Utility tractor · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
650 kg
Hover a source tag to verify
Overview
ManufacturerTYMReference
Sub-Compact Utility tractorReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine (gross)14.2 kWReference
Yanmar 3TNV74FReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke74 x 77 mmReference
Power (gross)14.2 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.0 LReference
Coolant capacity3.5 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity13.5 LReference
PTO & Hydraulics
Typeopen centerReference
Pump flow15.8 lpmReference
Total flow26.4 lpmReference
Steering flow8.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)498 kgReference
Rear lift (at 24"/610mm)307 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2500Reference
Dimensions
Wheelbase134 cmReference
Weight650 kgReference
Front tire16x7.50-9Reference
Rear tire24x12.00-12Reference
Weight79 kgReference
Standard tires (ag)Front: 16x7.50-9. Rear: 24x12.00-12Reference
Lawn/turf front16x7.50-8Reference
Lawn/turf rear16x12.00-12Reference
Length239 cmReference
Width113 cmReference
Height (ROPS)219 cmReference
Ground clearance21 cmReference
TYM T194 attachments
48" mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging amps40Reference
Battery volts12Reference
Attachment overview
48" mid-mount mower deckReference
Front-end loaderReference
48" Mower deck
Typemid-mount TYM MM48Reference
Type3-bladeReference
Cutting width121 cmReference
Overall width153 cmReference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
