Tractor · 2006Unverified
TYM T233
TYM T233 — Compact Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
750 kg
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.1L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine (gross)17.2 kWReference
Mitsubishi S3LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Power (gross)17.2 kWReference
Fuel systemindirect injectionReference
Air cleanerdry single elementReference
Rated RPM2700Reference
Starter volts12Reference

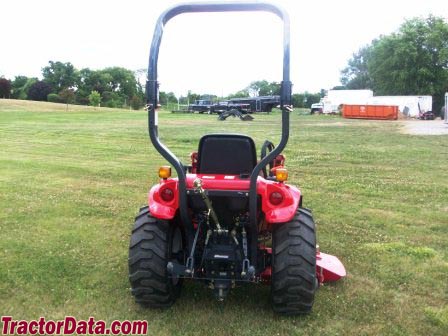

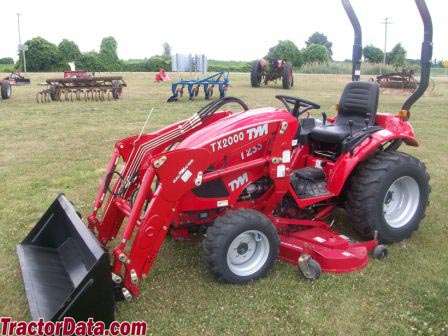

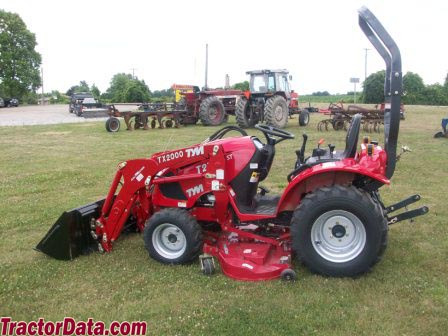

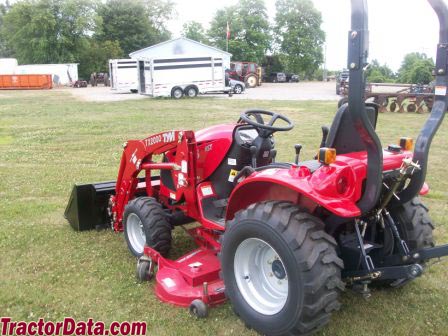

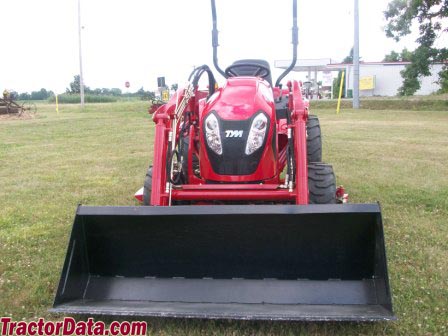

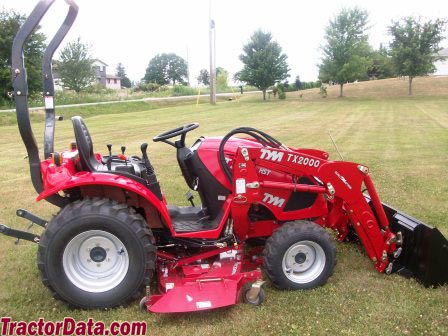

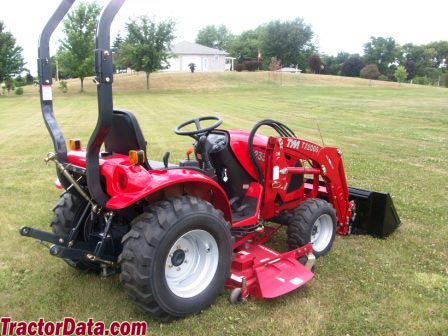

Image courtesy of Town and Country Sales and ServiceReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)14.5 kWReference
Typegear pumpReference
Valves1Reference
Pump flow18.9 lpmReference
Total flow28.8 lpmReference
Rear TypeIReference
Rear lift (at ends)749 kgReference
Rear lift (at 24"/610mm)550 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase148 cmReference
Weight750 kgReference
Front tire6-12Reference
Rear tire9.5-20Reference
Ag front6-12Reference
Ag rear9.5-20Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear12-16.5Reference
Industrial front23x8.50-12Reference
Industrial rear12-16.5Reference
Length233 cmReference
Width124 cmReference
Height199 cmReference
Ground clearance29 cmReference
TYM T233 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
TYM LT200 loaderReference
TX2000 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
