Tractor · 2015Unverified

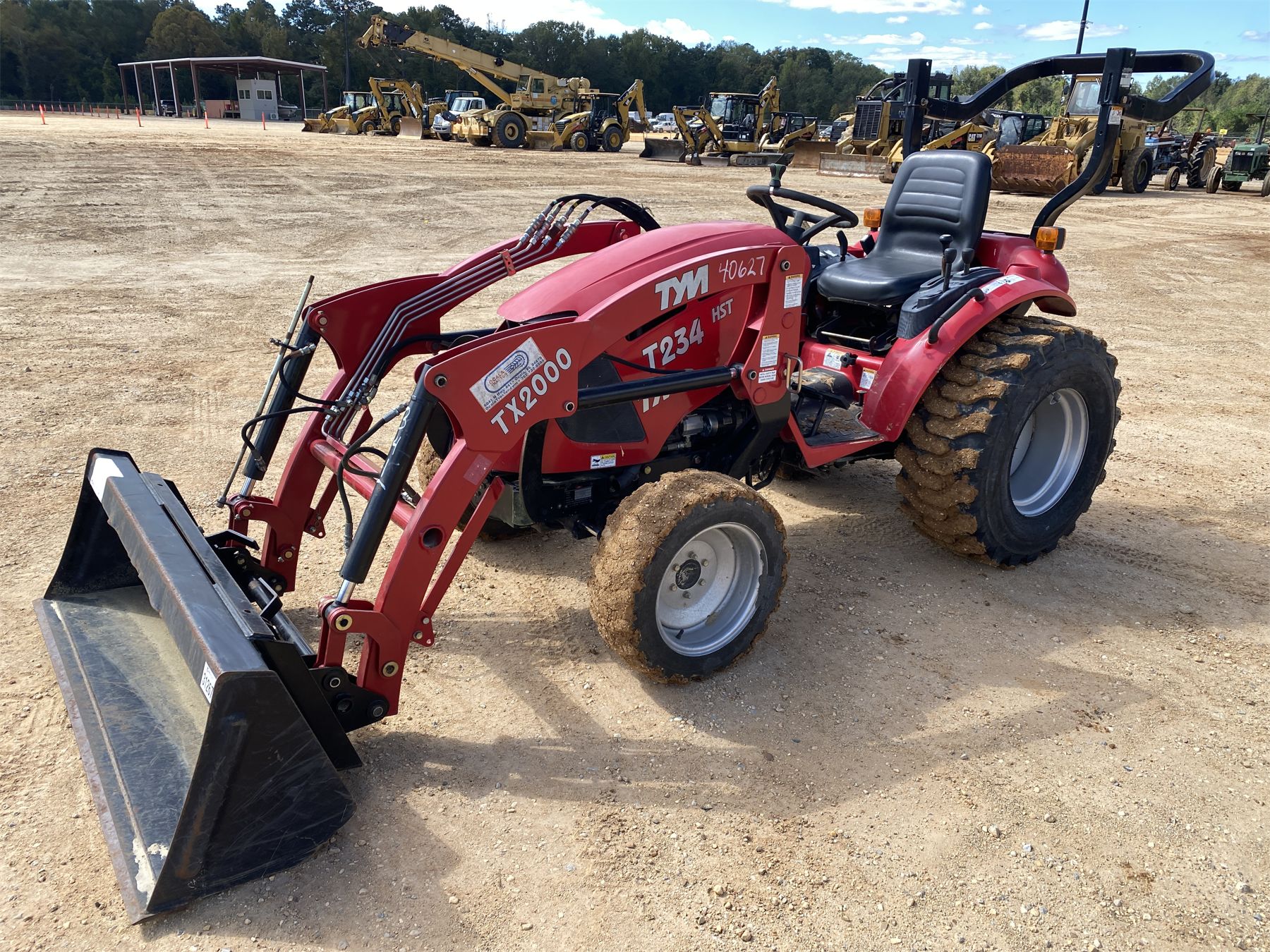

TYM T234

Name: TYM T234
Brand: TYM

TYM T234 — Sub-Compact Utility tractor · 24 hp. Reference specifications; pending source verification.

The TYM T234 is a tractor with a rated power of 24 hp, categorising it at the lower end of its class in terms of power output. It was manufactured between the years 2015 and 2019. The tractor features a liquid-cooled 3-cylinder diesel engine paired with a hydrostatic transmission. Its operating weight is listed at 865 kg, making it suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Max power

24.4 hp

Weight

865 kg

Catalogue coverage

Variants represented

Richest spec table

105 rows

Recorded power

24 hp

Recorded weight

865 kg

Transmissions

hydrostatic

Production years

2015-2019

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerTYMReference

Sub-Compact Utility tractorReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Mitsubishi 1.3L 3-cyl dieselReference

Fuel tank25.0 LReference

Engine (gross)18.2 kWReference

Mitsubishi S3L2Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke78 x 92 mmReference

Power (gross)18.2 kWReference

Fuel systemindirect injectionReference

Air cleanerdryReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Oil capacity4.3 LReference

Coolant capacity5.6 LReference

Fuel TypedieselReference

No of Cylinders3 CylinderReference

Rated engine speed2,500 RPMReference

Bore and stroke3.071x3.622 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity17.0 LReference

Transmission TypeHSTReference

forward and reverse optionsHydrostatic : infinite (2-range) forward and reverseReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)13.6 kWReference

Typeopen centerReference

Pump flow16.7 lpmReference

Total flow25.4 lpmReference

Steering flow8.7 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)695 kgReference

Rear lift (at 24"/610mm)499 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase148 cmReference

Weight865 kgReference

Weight123 kgReference

Weight356 kgReference

Industrial front23x8.5-12Reference

Industrial rear12x16.5Reference

Length273 cmReference

Width134 cmReference

Height (ROPS)228 cmReference

Ground clearance19 cmReference

TYM T234 attachments

60" mid-mount mower deckReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging amps50Reference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

Front-end loaderReference

BackhoeReference

60" Mower deck

Typemid-mount TYM MM60Reference

Type3-bladeReference

Cutting width152 cmReference

Cut height2 to 10 cmReference

TYM BY200 Backhoe

Backhoe typeTYM BY200 BackhoeReference

Transport height185 cmReference

2-Foot flat digging depth193 cmReference

Reach from pivot267 cmReference

Loading height161 cmReference

Bucket Rotation172°Reference

Swing Arc180°Reference

Bucket force1305 kgReference

Dipperstick force792 kgReference

General

Make & ModelTYMReference

SCV controlJoystickReference

Rollover protective structureTwo-post folding ROPS.Reference

Country of manufacturerSub-Compact Utility tractorReference

Capacities

Capacity80.4 ciReference

Crankcase oil volume4.5 qtsReference

Power

Max Power24.4 hpReference

PTO

PTO Power18.3 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)6.7 gpmReference

Hydraulics Typeopen centerReference

Steering & Implements flow2.3 gpm (4.4 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity695.8 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Overall Height228.1 cmReference

Overall Length273.8 cmReference

Overall Width134.1 cmReference

Overall weight865 kgReference

Wheels & tyres

Rear Wheel Type12x16.5Reference

Front Wheel Type23x8.5-12Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
