Tractor · 2021Unverified

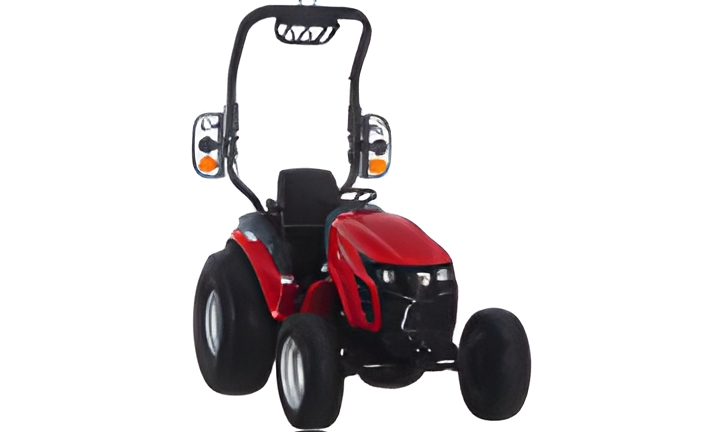

TYM T25
TYM T25 — Compact Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1881 to 2399 pounds
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Engine
Yanmar 1.3L 3-cyl dieselReference
Engine (gross)18.4 kWReference
Yanmar 3TNV80FReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke80 x 84 mmReference
Power (gross)18.4 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.7 LReference
Coolant capacity3.6 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)13.6 kWReference
Hydraulic system22.0 LReference
Typeopen centerReference
Capacity22.0 LReference
Rear valves1Reference
Pump flow15.8 lpmReference
Total flow26.3 lpmReference
Steering flow10.5 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)695 kgReference
Rear lift (at 24"/610mm)499 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel25.0 LReference
Dimensions
Wheelbase154 cmReference
Weight1881 to 2399 poundsReference
Weight123 kgReference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear33x12.50-16Reference
Industrial front23x8.50-14Reference
Industrial rear14-17.5Reference
Length273 cmReference
Width134 cmReference
Height (ROPS)228 cmReference
ROPS Weight853 kgReference
Cab Weight1088 kgReference
Ground clearance19 cmReference
TYM T25 attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount TYM TM60Reference
Type3-bladeReference
Cutting width152 cmReference
Cut height2 to 10 cmReference
TYM TB65 Backhoe
Backhoe typeTYM TB65 BackhoeReference
Transport height205 cmReference
Bucket width22 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Digging depth204 cmReference
Reach from pivot298 cmReference
Loading height160 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
