Tractor · 2014Unverified

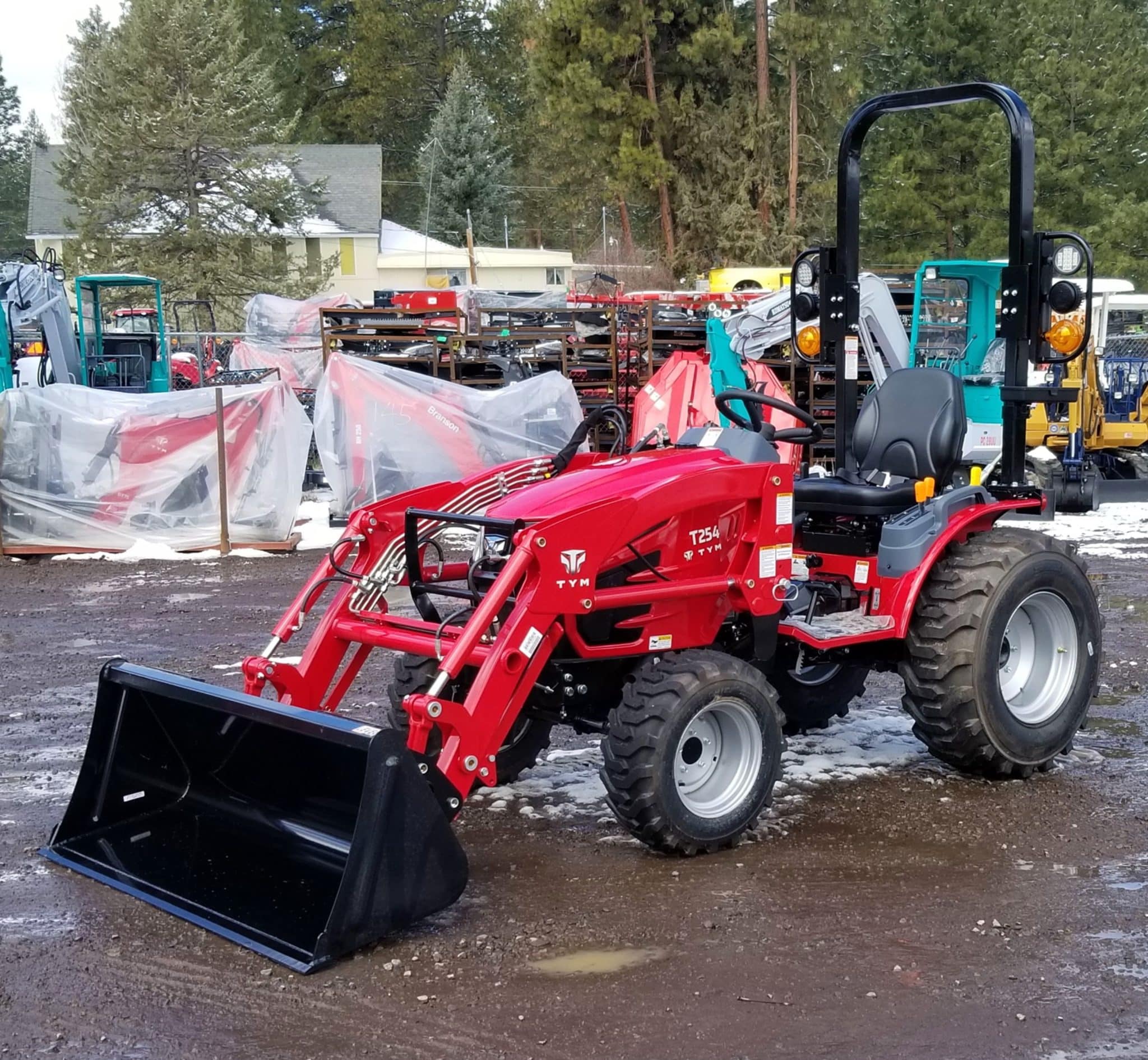

TYM T254

Name: TYM T254
Brand: TYM

TYM T254 — Compact Utility tractor · 24 hp. Reference specifications; pending source verification.

The TYM T254 is a compact tractor model with a power rating of 24 hp. Manufactured in 2014, it features a 3-cylinder electric liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive system. The tractor's listed weight is 730 kg, and it is designed for use on small to medium-sized plots of land. Its capabilities include handling tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Max power

23.9 hp

Weight

730 kg

Catalogue coverage

Variants represented

Richest spec table

106 rows

Recorded power

24 hp

Recorded weight

730 kg

Transmissions

hydrostatic

Production years

2014-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerTYMReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Yanmar 1.3L 3-cylReference

Fuel tank20.1 LReference

Engine (gross)18.0 kWReference

Yanmar 3TNV80FReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke80 x 84 mmReference

EmissionsTier IVReference

Power (gross)18.0 kWReference

Fuel systemindirect injectionReference

Compression23:1Reference

Rated RPM3000Reference

Idle RPM1350-3235Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3Reference

Rated engine speed3,000 rpmReference

AspirationNatural AspirationReference

Cooling system3.8 qtReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeHSTReference

forward and reverse optionsInfinite 2-rangeReference

forward speed range17.7 km/hReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen center dual gear pumpReference

Valves1Reference

Total flow26.9 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)600 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2893Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Engine RPM2000@2875Reference

Dimensions

Wheelbase146 cmReference

Weight730 kgReference

Front tire6.0-12Reference

Rear tire9.5-16Reference

Weight123 kgReference

Weight328 kgReference

Ag front6.0-12Reference

Ag rear9.5-16Reference

Length256 cmReference

Width116 cmReference

Height (ROPS)233 cmReference

Ground clearance17 cmReference

TYM T254 attachments

60" mid-mount mower deckReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery volts12Reference

Alternator size40 AReference

Attachment overview

60" mid-mount mower deckReference

Front-end loaderReference

BackhoeReference

60" Mower deck

Typemid-mount TYM MM60Reference

Type3-bladeReference

Cutting width152 cmReference

Cut height2 to 10 cmReference

TYM BY60 Backhoe

Backhoe typeTYM BY60 BackhoeReference

Transport height167 cmReference

2-Foot flat digging depth195 cmReference

Reach from pivot248 cmReference

Loading height152 cmReference

Bucket Rotation185°Reference

Swing Arc140°Reference

Bucket force929 kgReference

General

Make & ModelYanmar @ 3TNV80FReference

Air cleanerSingle DryReference

Cruise controltrueReference

Differential lockYesReference

Capacities

Capacity77.3 cu. in.Reference

Front Axle capacity3.7 qtReference

Crankcase oil volume2.9 qtReference

Power

Max Power23.9 hpReference

PTO

PTO Power18.8 hpReference

Rear PTO PowerAvailableReference

Rear PTO ControlElectric/HydroReference

Rear PTO RPM540 rpmReference

Steering & brakes

BrakesWet DiscReference

Steering typeHydrostaticReference

Hydraulics

Pump Rated Output (total)26.3 l/minReference

Remote Valves1Reference

Steering & Implements flow2.77 gpm (4.18 gpm)Reference

Rear Hitch category (SAE designation)Category I (N)Reference

Rear Hitch maximum lift capacity550.7 kgReference

Dimensions & weight

Height Over ROPS231.9 cmReference

Overall Width116.3 cmReference

Turning radius225 cmReference

Overall weight743 kgReference

Operator station

Cab AvailabilityOptionalReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
