Tractor · 2019Unverified

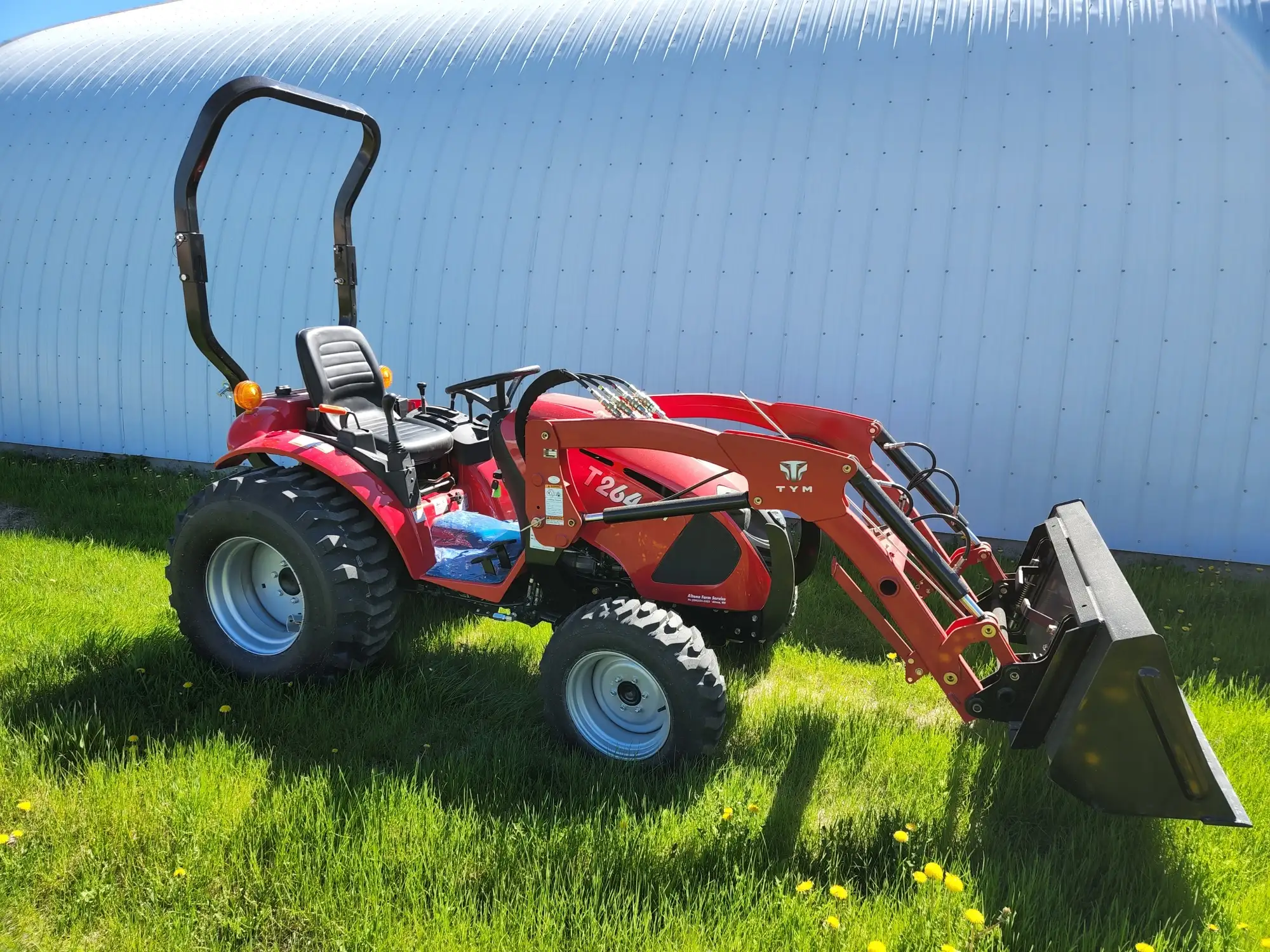

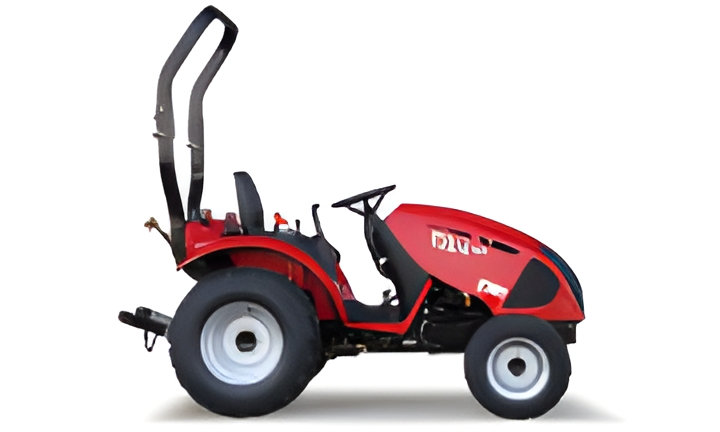

TYM T264
TYM T264 — 2 Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
853 kg
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Kukje 1.2L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine (gross)18.0 kWReference
Kukje A1100N2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke78 x 82 mmReference
Power (gross)18.0 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.3 LReference
Coolant capacity5.6 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity17.0 LReference
PTO & Hydraulics
PTO (claimed)13.6 kWReference
Typeopen centerReference
Pump flow16.7 lpmReference
Total flow26.9 lpmReference
Steering flow10.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)681 kgReference
Rear lift (at 24"/610mm)499 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase148 cmReference
Weight853 kgReference
Weight123 kgReference
Weight356 kgReference
Industrial front23x8.5-12Reference
Industrial rear12x16.5Reference
Length273 cmReference
Width134 cmReference
Height (ROPS)228 cmReference
Ground clearance19 cmReference
TYM T264 attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount TYM MM60R-1Reference
Type3-blade with hydraulic liftReference
Cutting width152 cmReference
Cut height2 to 10 cmReference
TYM BY200 Backhoe
Backhoe typeTYM BY200 BackhoeReference
Transport height185 cmReference
Bucket width22 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
2-Foot flat digging depth193 cmReference
Reach from pivot267 cmReference
Loading height161 cmReference
Bucket Rotation172°Reference
Swing Arc180°Reference
Bucket force1305 kgReference
Dipperstick force792 kgReference
TYM TB65 Backhoe
Backhoe typeTYM TB65 BackhoeReference
Transport height205 cmReference
Bucket width22 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Digging depth204 cmReference
Reach from pivot298 cmReference
Loading height160 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
