Tractor · 2006Unverified

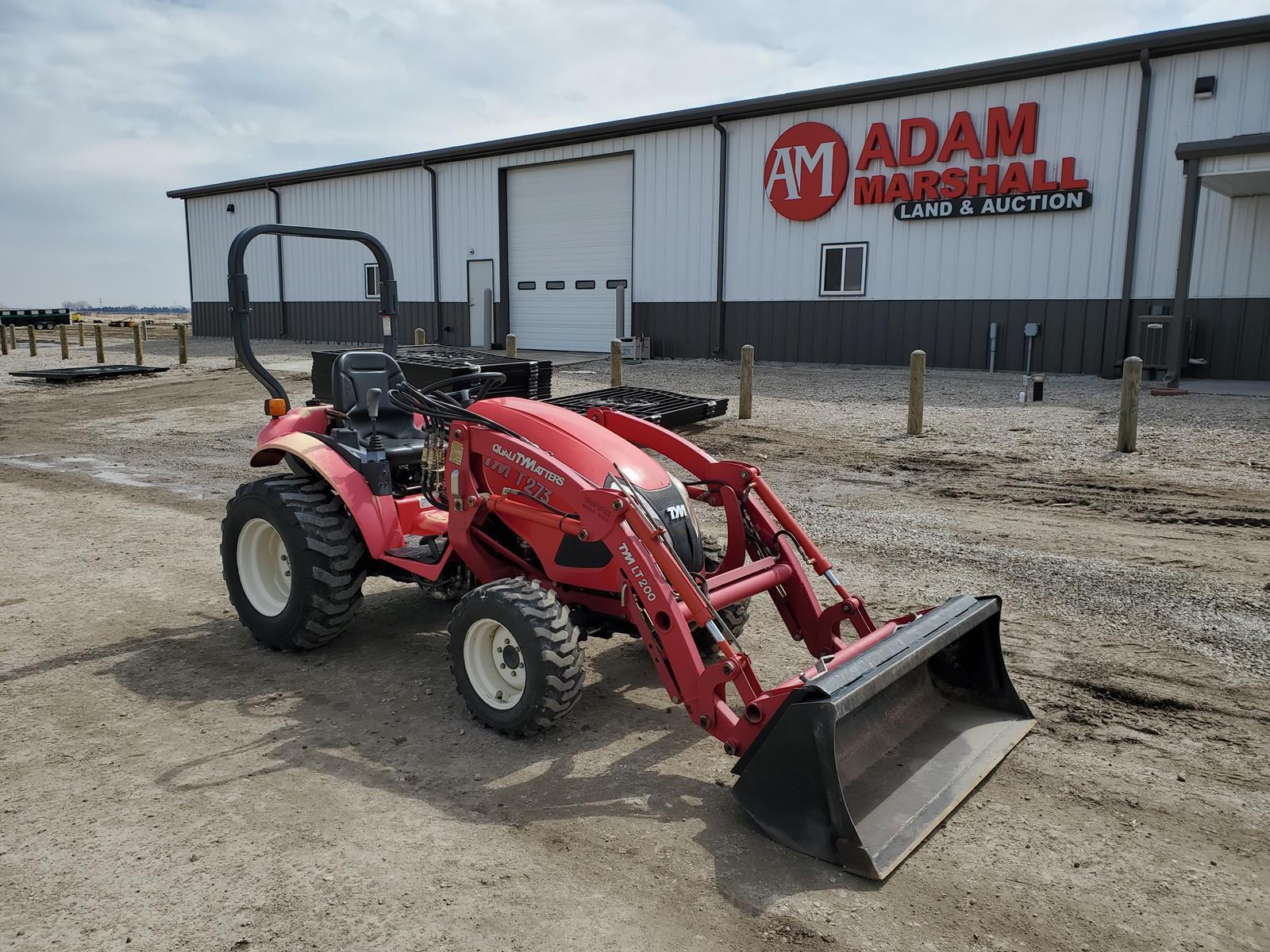

TYM T273
TYM T273 — Compact Utility tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
750 kg
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine20.1 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Power20.1 kWReference
Rated RPM2700Reference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Valves1Reference
Pump flow18.9 lpmReference
Total flow28.8 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)749 kgReference
Rear PTO Type540Reference
Mid PTO2000Reference
Dimensions
Wheelbase148 cmReference
Weight750 kgReference
Front tire6-14Reference
Rear tire11.2-20Reference
Ag front6-14Reference
Ag rear11.2-20Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear12-16.5Reference
Industrial front23x8.50-12Reference
Industrial rear12-16.5Reference
Length233 cmReference
Width124 cmReference
Height201 cmReference
Ground clearance32 cmReference
TYM T273 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
TYM LT200 loaderReference
TYM TX2000 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
