Tractor · 2001Unverified

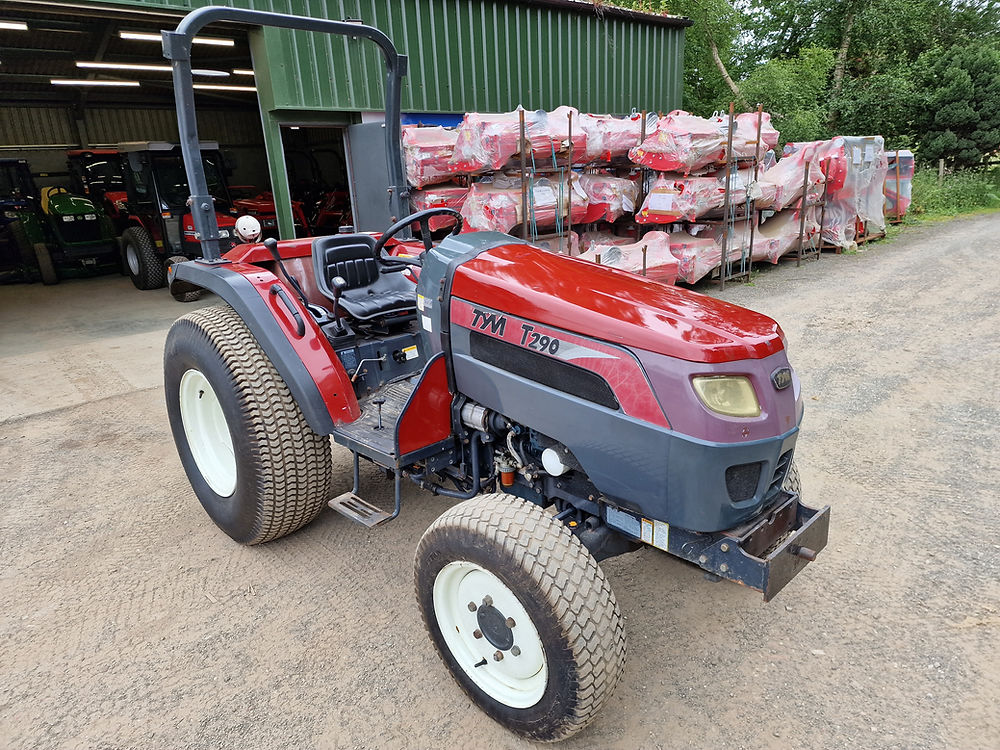

TYM T290

Name: TYM T290
Brand: TYM

TYM T290 — Compact Utility tractor · 31 hp. Reference specifications; pending source verification.

The TYM T290 model is a tractor rated at approximately 31 hp, positioning it at the lower end of its class. It was manufactured in 2001. It features a 3-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a 12-speed gearbox. The tractor's listed operating weight is 1389 kg, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

31 hp

Max power

31 hp

Weight

1389 kg

Catalogue coverage

Variants represented

Richest spec table

80 rows

Recorded power

31 hp

Recorded weight

1389 kg

Transmissions

12-speed synchromesh

Production years

2001-2001

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerTYMReference

Compact Utility tractorReference

Built in South KoreaReference

Four-wheel driveReference

Differential lockstandardReference

SteeringpowerReference

Wet disc brakesReference

Two-post ROPS.Reference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank28.4 LReference

Engine23.1 kWReference

Kubota D1503Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke83 x 92 mmReference

Power23.1 kWReference

Air cleanerdryReference

Compression23:1Reference

Rated RPM2800Reference

Idle RPM850-3000Reference

Firing order1-2-3Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 CylinderReference

Rated engine speed2,800 RPMReference

Bore and stroke3.26x3.64 inchesReference

Compression ratio23:1Reference

Cooling systemliquid-cooledReference

Transmission

12-speed synchromeshReference

TypesynchromeshReference

Gears12 forward and reverseReference

Clutchdry discReference

Transmission TypeSync ShuttleReference

forward and reverse optionsSynchromesh : 12 F and 12 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIReference

Controlposition and draft controlReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2541Reference

Dimensions

Wheelbase162 cmReference

Weight1389 kgReference

Front tire7-16Reference

Rear tire11.2-24Reference

Ag front7-16Reference

Ag rear11.2-24Reference

Length327 cmReference

Width132 cmReference

Height (ROPS)233 cmReference

Ground clearance33 cmReference

Front tread106 cmReference

Rear tread106 to 147 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Battery volts12Reference

General

Make & ModelTYMReference

Rollover protective structureTwo-post ROPS.Reference

Country of manufacturerSouth KoreaReference

Capacities

Capacity91.5 ciReference

Power

Max Power31 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@2,541 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Rear Hitch category (SAE designation)Category IReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over ROPS233.7 cmReference

Overall Length327.7 cmReference

Overall Width132.1 cmReference

Overall weight1,389.8 kgReference

Wheels & tyres

Rear Wheel Type11.2-24Reference

Rear wheel tread range42 to 58 inchesReference

Front Wheel Type45,489Reference

Front Wheel tread range106.7 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
