Tractor · 2009Unverified

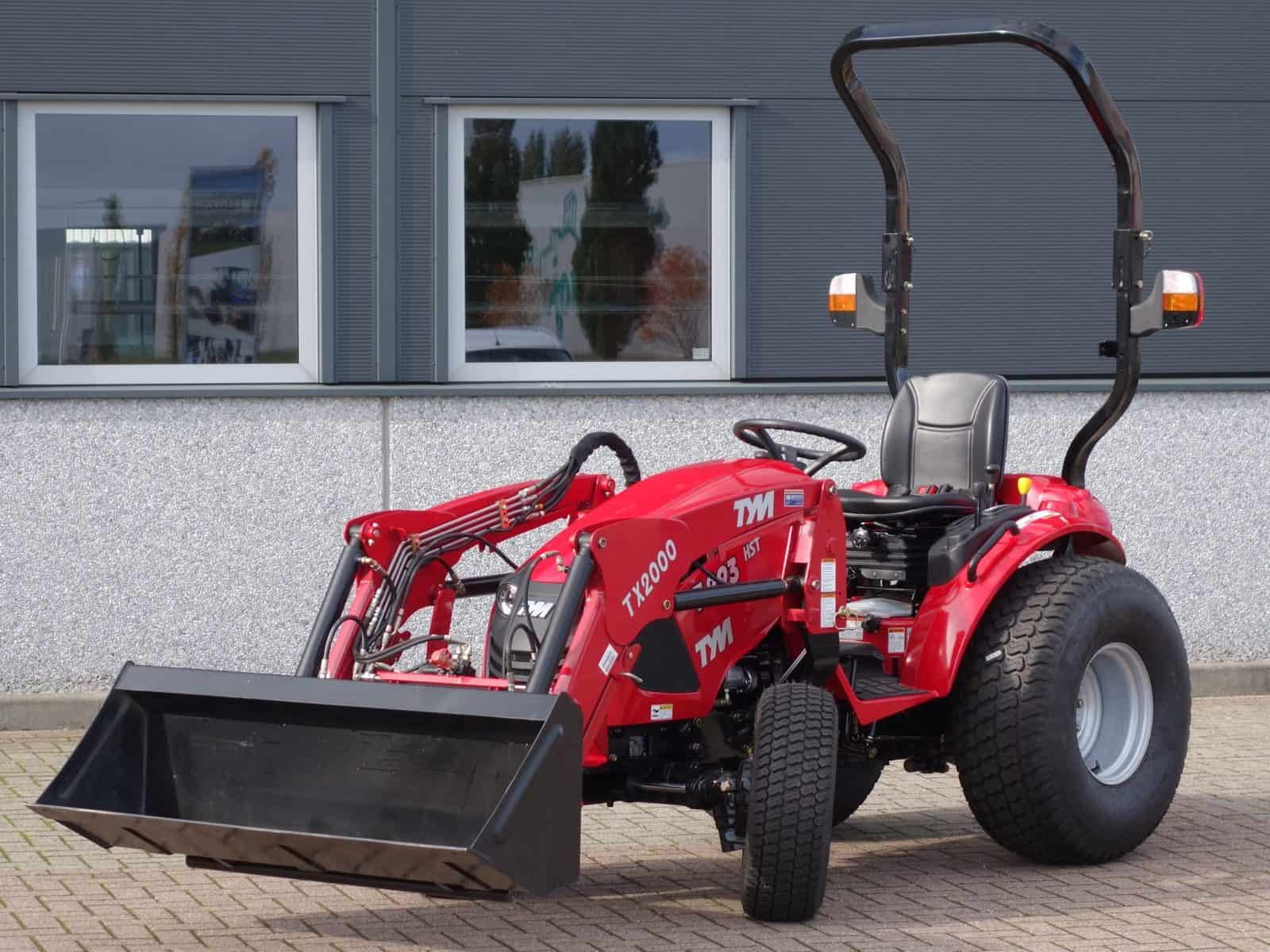

TYM T293

Name: TYM T293
Brand: TYM

TYM T293 — 200 Series · 29 hp. Reference specifications; pending source verification.

The TYM T293 is a tractor with a rated output of 29 hp — making it one of the more compact options in its class. The T293 was produced in 2009. Power comes from a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. Listed weight is 898 kg, and it is aimed at jobs of around up to 200 ac. Recorded specifications in UK and US units are listed below.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

29 hp

Max power

29 hp

Weight

898 kg

Catalogue coverage

Variants represented

Richest spec table

107 rows

Recorded power

29 hp

Recorded weight

898 kg

Transmissions

hydrostatic

Production years

2009-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerTYMReference

Compact Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Mitsubishi 1.3L 3-cyl dieselReference

Engine (gross)21.6 kWReference

Mitsubishi S3L2Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Power (gross)21.6 kWReference

Fuel systemindirect injectionReference

Air cleanerdual dry elementReference

Rated RPM2800Reference

Starter volts12Reference

Oil capacity5.7 LReference

Coolant capacity8.8 LReference

Fuel TypedieselReference

No of Cylinders3 cyilnderReference

Rated engine speed2,800 rpmReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity36.0 LReference

Transmission TypeHSTReference

forward and reverse optionsHydrostatic; infinite (2-range) F&RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)16.3 kWReference

Hydraulic system36.0 LReference

Typedual gear pumpReference

Capacity36.0 LReference

Valves1Reference

Pump flow19.7 lpmReference

Total flow29.5 lpmReference

Steering flow9.8 lpmReference

Rear Type1Reference

Controlposition controlReference

Rear lift (at ends)695 kgReference

Rear lift (at 24"/610mm)499 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Capacities

Fuel25.0 LReference

Front axle8.1 LReference

Fuel tank25 LReference

Crankcase oil volume6 qtsReference

Dimensions

Wheelbase148 cmReference

Weight898 kgReference

Weight356 kgReference

Industrial front25x8.5-14Reference

Industrial rear14x17.5Reference

Length273 cmReference

Width143 cmReference

Height (ROPS)232 cmReference

ROPS Weight898 kgReference

Ground clearance24 cmReference

TYM T293 attachments

60" mid-mount mower deckReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Charging volts12Reference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

TYM LT250 loaderReference

TYM TX2000 loaderReference

BackhoeReference

60" Mower deck

Typemid-mount TYM TMB60Reference

Cutting width152 cmReference

TYM BT200 Backhoe

Backhoe typeTYM BT200 BackhoeReference

2-Foot flat digging depth193 cmReference

Reach from pivot287 cmReference

Loading height161 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1290 kgReference

Dipperstick force722 kgReference

General

Make & ModelTYMReference

Rollover protective structureTwo-post ROPSReference

Power

Max Power29 hpReference

PTO

PTO Power21.8 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)7.8 gpmReference

Hydraulics Typedual gear pumpReference

Remote Valves1 valveReference

Steering & Implements flow2.6 gpm (5.2 gpm)Reference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch maximum lift capacity695.8 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Height Over ROPS233.7 cmReference

Overall Length273.8 cmReference

Overall Width143 cmReference

Overall weight898.1 kgReference

Wheels & tyres

Rear Wheel Type14x17.5Reference

Front Wheel Type25x8.5-14Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
