Tractor · Unverified

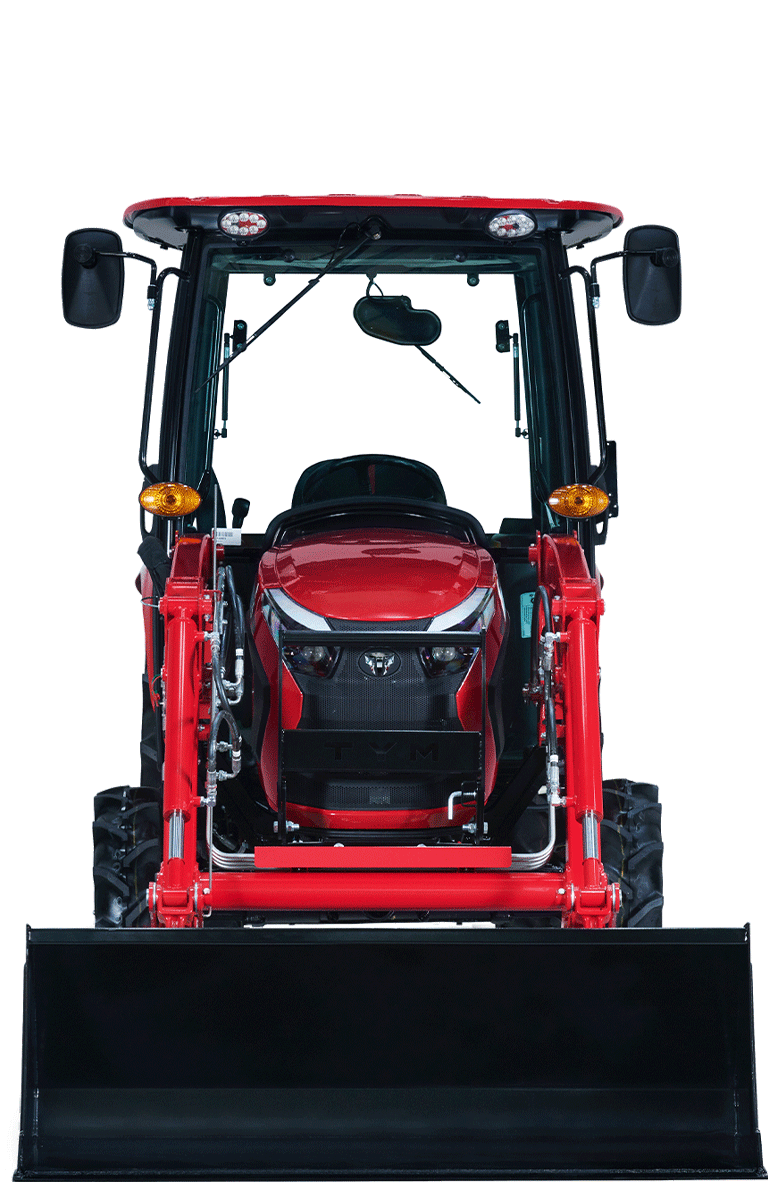

TYM T302
TYM T302 — Compact Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1389 kg
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Disc brakesReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.5L 4-cyl dieselReference
Fuel tank32.9 LReference
Engine22.4 kWReference
MitsubishiReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power22.4 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Rear PTO Type550/727/1013Reference
Dimensions
Wheelbase164 cmReference
Weight1389 kgReference
Front tire7-16Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Length328 cmReference
Width131 cmReference
Height (ROPS)236 cmReference
Ground clearance30 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
