Tractor · 2002Unverified

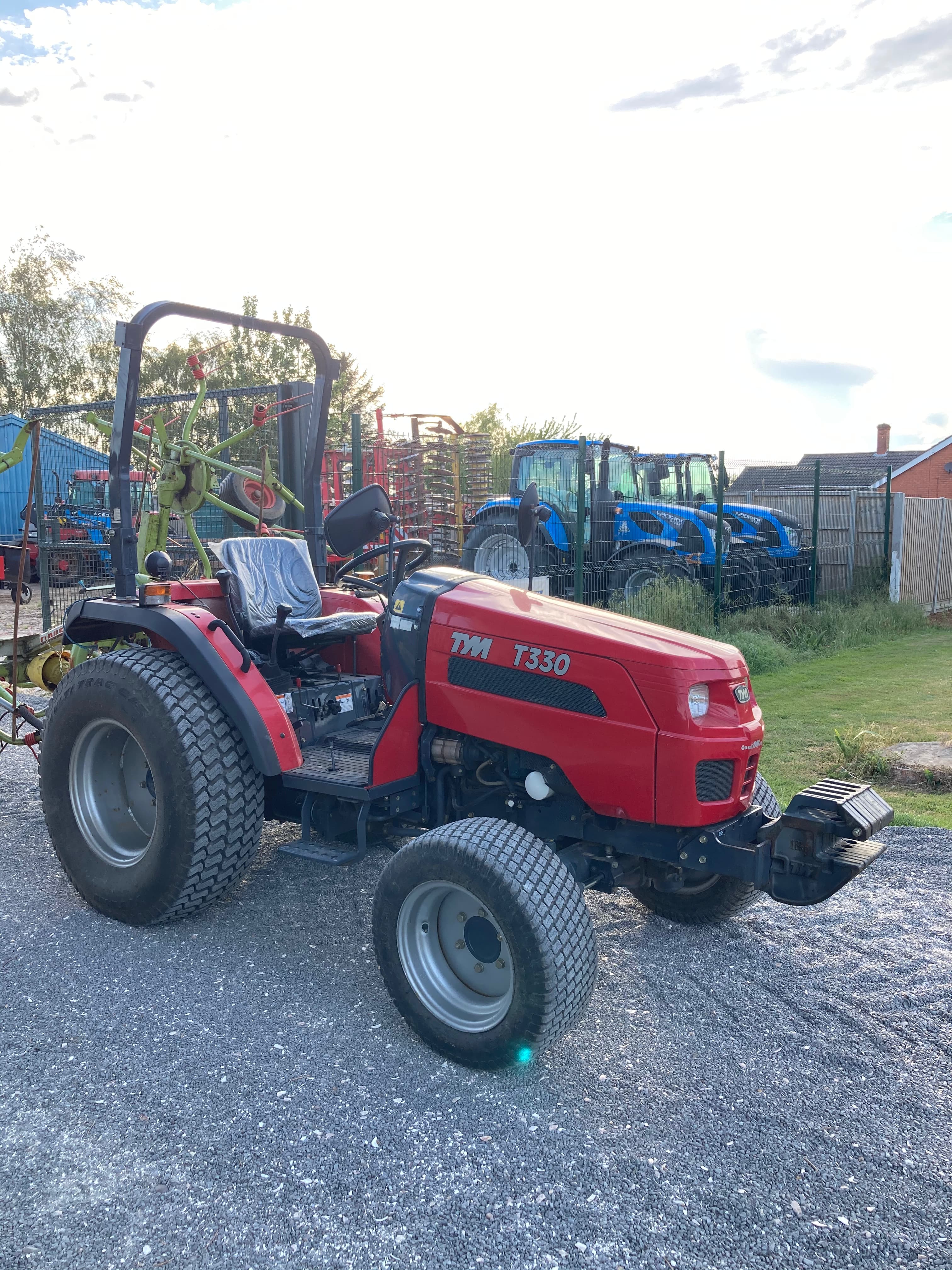

TYM T330

Name: TYM T330
Brand: TYM

TYM T330 — Compact Utility tractor · 27 hp. Reference specifications; pending source verification.

The TYM T330 is a compact tractor with a rated output of 27 hp, suitable for smaller-scale applications. It was manufactured between 2002 and 2009. The tractor features a 3-cylinder diesel liquid-cooled engine, powering a four-wheel drive system with a hydrostatic transmission. Its listed weight is 1360 kg, with a maximum workload capacity of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

27 hp

Weight

1360 kg

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

27 hp

Recorded weight

1360 kg

Transmissions

12-speed sync shuttle

Production years

2002-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerTYMReference

Compact Utility tractorReference

Built in South KoreaReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS.Reference

Engine

Kubota 1.5L 3-cyl dieselReference

Engine23.1 kWReference

Kubota D1503Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke83 x 92 mmReference

Power23.1 kWReference

Air cleanerdryReference

Compression23:1Reference

Rated RPM2800Reference

Idle RPM850-3000Reference

Firing order1-2-3Reference

StarterelectricReference

Starter volts12Reference

Oil capacity5.7 LReference

Coolant capacity7.0 LReference

Transmission

12-speed sync shuttleReference

hydrostaticReference

Typesync shuttleReference

Gears12 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)19.8 kWReference

Hydraulic system32.2 LReference

Typeopen centerReference

Capacity32.2 LReference

Valves2Reference

Pump flow23.8 lpmReference

Total flow36.7 lpmReference

Total flow41.1 lpmReference

Rear TypeIReference

Rear lift (at ends)942 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2541Reference

Capacities

Fuel31.0 LReference

Dimensions

Wheelbase162 cmReference

Weight1360 kgReference

Front tire7-16Reference

Rear tire11.2-24Reference

Ag front7-16Reference

Ag rear11.2-24Reference

Length307 cmReference

Width132 cmReference

Height (ROPS)236 cmReference

Ground clearance30 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
