Tractor · 2009Unverified

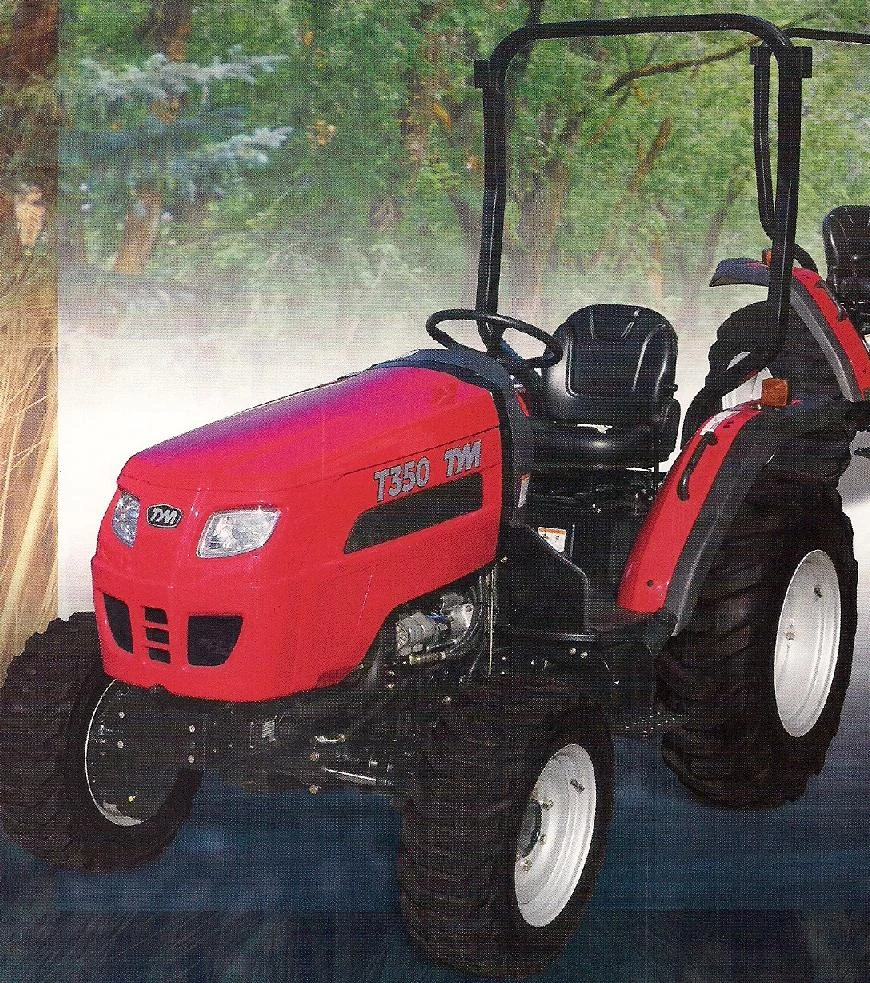

TYM T350
TYM T350 — 300 Series · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1390 kg
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.8L 4-cyl dieselReference
Engine (gross)26.1 kWReference
Mitsubishi S4L2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Power (gross)26.1 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Rated RPM2700Reference
Starter volts12Reference
Oil capacity5.7 LReference
Coolant capacity7.0 LReference
Transmission
9-speed mechanical gearReference
Typemechanical gearReference
Gears9 forward and 3 reverseReference
Clutchsingle dry discReference
Oil capacity32.9 LReference
PTO & Hydraulics
PTO (claimed)21.6 kWReference
Hydraulic system32.9 LReference
Typedual gear pumpReference
Capacity32.9 LReference
Pump flow23.8 lpmReference
Total flow40.1 lpmReference
Steering flow16.3 lpmReference
Rear Type1Reference
Controlposition controlReference
Rear lift (at ends)1200 kgReference
Rear lift (at 24"/610mm)800 kgReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel27.6 LReference
Front axle2.1 LReference
Dimensions
Wheelbase163 cmReference
Weight1390 kgReference
Front tire7.0-16Reference
Rear tire11.2-24Reference
Weight484 kgReference
Ag front7.0-16Reference
Ag rear11.2-24Reference
Industrial front27x10.5-15Reference
Industrial rear12.5x20Reference
Length303 cmReference
Width135 cmReference
Height (ROPS)240 cmReference
Ground clearance32 cmReference
TYM T350 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Charging volts12Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
TYM BT300 Backhoe
Backhoe typeTYM BT300 BackhoeReference
2-Foot flat digging depth227 cmReference
Reach from pivot317 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1386 kgReference
Dipperstick force712 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
