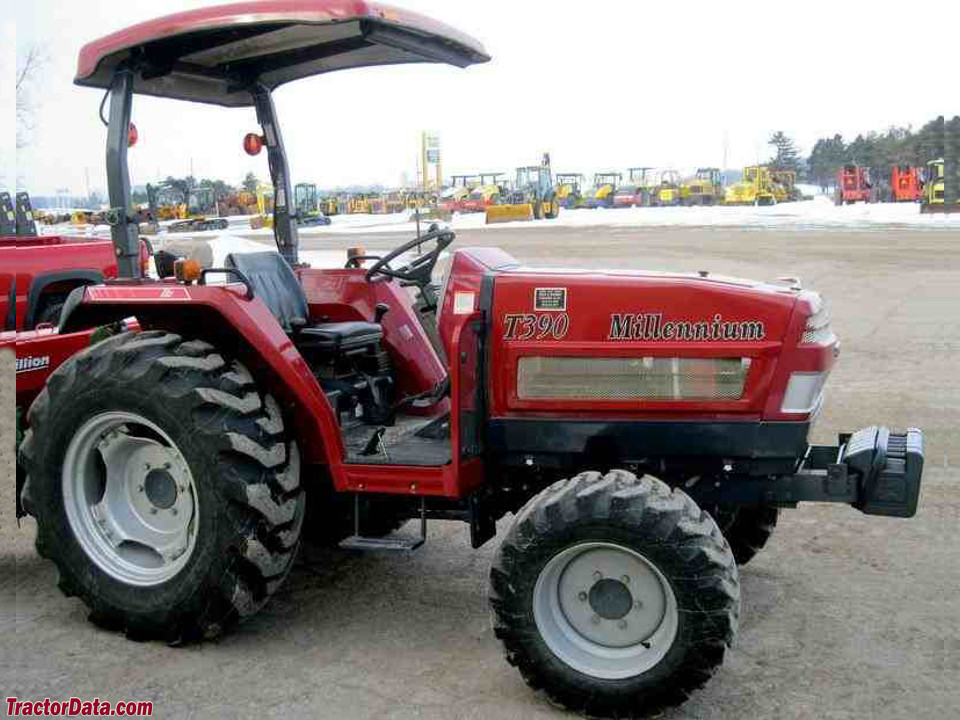

The TYM T390 is a tractor model rated at 39 hp — making it one of the more compact options in its class. Power comes from a 4-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 12-speed gearbox. Listed weight is 1676 kg, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
1676 kg
Catalogue coverage
Variants represented
2
Richest spec table
44 rows
Recorded power
39 hp
Recorded weight
1676 kg
Transmissions
12-speed synchromesh
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockmechanical rearReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Kubota 1.9L 4-cyl dieselReference
Fuel tank35.0 LReference
Engine29.1 kWReference
Kubota V1903Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke79 x 91 mmReference
Power29.1 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1202 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase180 cmReference
Weight1676 kgReference
Front tire8-16Reference
Rear tire13.6-24Reference
Ag front8-16Reference
Ag rear13.6-24Reference
Length335 cmReference
Width152 cmReference
Height (ROPS)241 cmReference
Ground clearance35 cmReference
Front tread127 cmReference
Rear tread127 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
