Tractor · Unverified

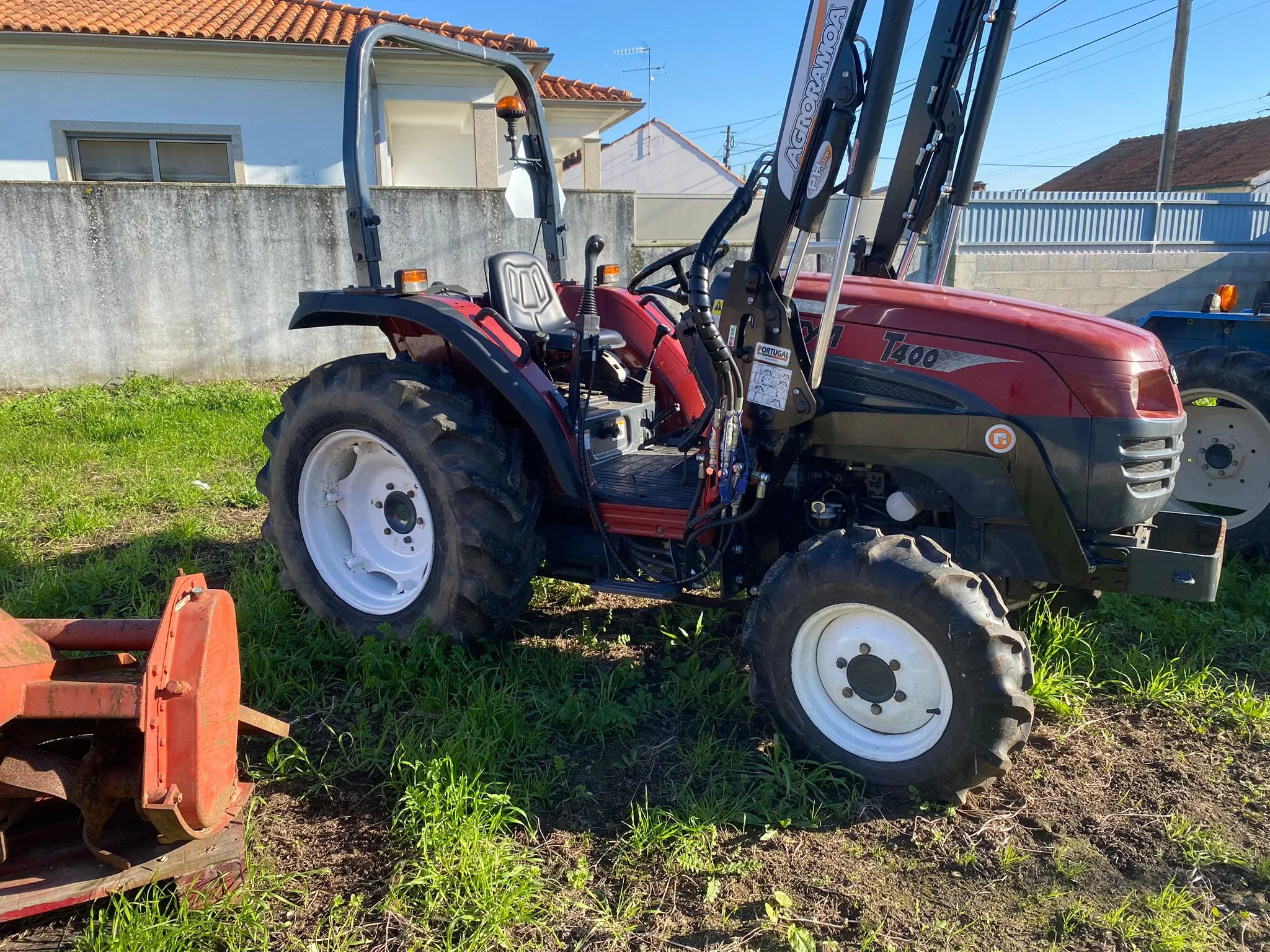

TYM T400

Name: TYM T400
Brand: TYM

TYM T400 · 37 hp. Reference specifications; pending source verification.

The TYM T400 is a tractor rated at 37 hp — making it one of the more compact options in its class. It is powered by a 4-cylinder diesel liquid-cooled engine, driving through a hydrostatic transmission. Listed weight is 1796 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

37 hp

Weight

1796 kg

Catalogue coverage

Variants represented

Richest spec table

39 rows

Recorded power

37 hp

Recorded weight

1796 kg

Transmissions

12-speed

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerTYMReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Engine

Kubota 1.9L 4-cyl dieselReference

Engine32.1 kWReference

Kubota V1903Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement1.9 LReference

Power32.1 kWReference

Rated RPM2800Reference

Oil capacity7.9 LReference

Coolant capacity9.0 LReference

Transmission

12-speedReference

Transmissionsync shuttleReference

Gears12 forward and reverseReference

PTO & Hydraulics

PTO (claimed)27.2 kWReference

Hydraulic system34.1 LReference

Capacity34.1 LReference

Valves2 rear, 1 frontReference

Pump flow31.8 lpmReference

Total flow44.6 lpmReference

Rear TypeI/IIReference

Rear lift (at ends)1299 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Capacities

Fuel35.0 LReference

Dimensions

Wheelbase180 cmReference

Weight1796 kgReference

Front tire8-16Reference

Rear tire13.6-24Reference

Ag front8-16Reference

Ag rear13.6-24Reference

Length322 cmReference

Width150 cmReference

Height241 cmReference

Ground clearance33 cmReference

Electrical

Charging amps50Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
